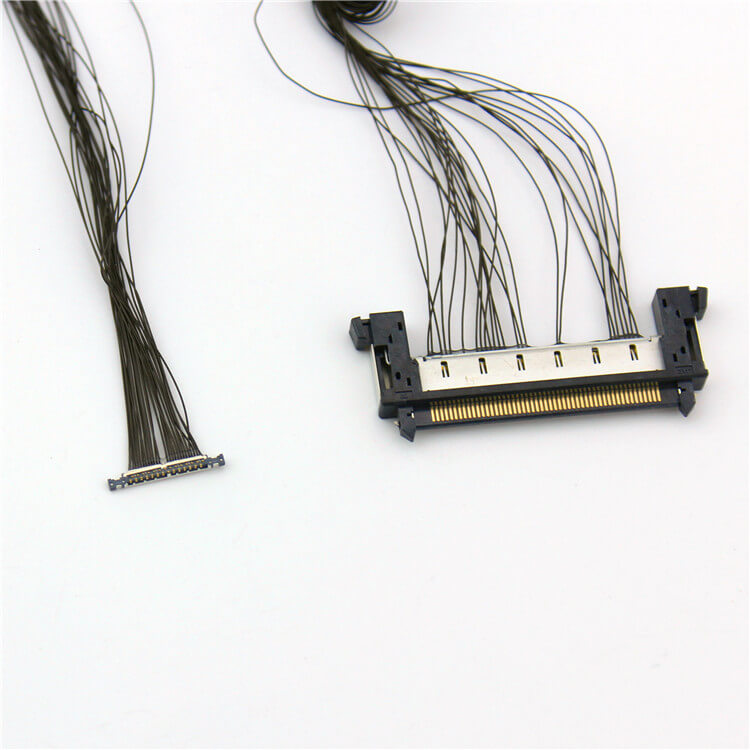

Introduction: Precision in Motion Demands Resilience

In the intricate dance of modern electronics, where devices vibrate on factory floors, rumble down highways, endure turbulent flights, or operate within intricate medical instruments, the integrity of signal transmission is paramount. Micro coaxial cables, the vital neural pathways carrying high-frequency signals in confined spaces, face a constant challenge: vibration. Understanding their vibration resistance capabilities isn’t just a technical detail – it’s critical for ensuring system reliability, longevity, and peak performance in demanding environments. This article delves into the engineering, testing, and real-world implications of micro coax cable vibration resilience.

The Anatomy of Vibration Resistance: How Micro Coax Withstands the Shake

Micro coaxial cables resist vibration through meticulous design and material science:

1. ​Robust Shielding: Multi-layered shielding (often a combination of foil and high-density braid) is paramount. This shields against EMI/RFI and physically holds the dielectric and center conductor assembly firmly in place. A tighter braid coverage percentage significantly enhances crush resistance and mechanical stability during vibration. Premium cables may employ specific alloys or treatments to resist work-hardening and cracking.
2. ​Advanced Dielectric Stability: The dielectric material separating the center conductor from the shield must resist deformation. Highly stable, low-compression foamed or solid fluoropolymers (like FEP, PFA) are preferred. They maintain consistent electrical properties (impedance, velocity of propagation) despite physical stress, preventing signal degradation and reflections. Less compressible dielectrics minimize the risk of permanent deformation (“set”) under cyclic stress.
3. ​Precision Center Conductor Construction: Stranded center conductors offer superior flexibility and fatigue resistance compared to solid conductors. The number of strands and strand finishing (e.g., silver plating over copper-clad steel for strength and conductivity) impact flexibility and resistance to work hardening/fatigue failure under high-cycle vibration. Optimal annealing ensures ductility.
4. ​Enhanced Jacket Materials: The outer jacket provides critical physical protection. Selection goes beyond basic abrasion and chemical resistance. Materials with high tear strength, excellent flexibility at operating temperatures, and resistance to cold flow (creep under constant pressure) are crucial. Silicone rubber, specific irradiated polyolefins, and engineered thermoplastic elastomers (TPEs) excel in demanding vibration scenarios.
5. ​Tight Tolerances & Consistency: Precision manufacturing ensures minimal void spaces between layers. This internal structural integrity prevents components from shifting relative to each other during vibration, minimizing fretting wear and signal path interruptions.

Quantifying Resilience: Testing Standards for Vibration Resistance

Micro coax vibration performance is rigorously measured against established standards:

• ​Random Vibration: Simulates the complex vibrations experienced in real-world environments (e.g., transportation, machinery). Standards like ​MIL-STD-202 Method 214 or ​IEC 60068-2-64 define test profiles specifying frequency ranges (e.g., 10Hz to 2000Hz), power spectral density (PSD – indicating vibration intensity at different frequencies), and test duration along three axes. Performance is measured by changes in characteristic impedance (should remain stable), insertion loss (minimal increase allowed, e.g., < 0.1 dB post-test), and the absence of opens/shorts.
• ​Sinusoidal Vibration: Tests resonant frequencies and endurance. Standards like ​MIL-STD-202 Method 201A or ​IEC 60068-2-6 define specific frequencies (or sweeps), displacement amplitudes (e.g., millimeters of peak-to-peak movement), and durations at resonance points or across frequency ranges. Similar electrical measurements are made pre and post-test.
• ​Shock: While distinct, shock resistance (e.g., ​MIL-STD-202 Method 213) often correlates with a cable’s ability to withstand severe vibration spikes or sudden impacts.
• ​Temperature Extremes: Vibration tests are often combined with high and low-temperature cycling (MIL-STD-202 Method 107 combined with vibration) to simulate worst-case operational environments, where material properties change significantly.

Real-World Impact: Where Vibration Resistance Matters Most

Robust micro coax vibration resistance is mission-critical in numerous sectors:

1. ​Automotive & Transportation: Engine compartments, transmissions, suspension systems, and in-cabin electronics within EVs, hybrids, and conventional vehicles experience severe and constant vibration. Drive-by-wire systems, ADAS sensors (radar, cameras), infotainment, and battery management systems (BMS) rely on micro coax stability.
2. ​Aerospace & Defense: Avionics, in-flight entertainment systems (IFE), radar systems, communication suites, engine sensors, and missiles endure extreme vibrations during takeoff, landing, turbulence, and weapon launch. Failure is not an option.
3. ​Industrial Automation & Robotics: Motors, conveyors, CNC machines, articulated robot arms, and process control equipment generate significant vibration. High-frequency data transmission for sensors, vision systems, and control signals must remain uninterrupted for precise operation and safety.
4. ​Medical Equipment: Diagnostic imaging (MRI, CT scanners), robotic surgical systems, patient monitoring devices, and lab analyzers demand precise signal integrity. Vibration resistance ensures reliable data transmission and patient safety.
5. ​Consumer Electronics (High-Performance): Drones (motors and gimbals), vibration-prone wearables, and ruggedized portable devices benefit from cabling that can handle everyday shocks and shakes.
6. ​Test & Measurement Equipment: Equipment used in harsh environments (e.g., field testing vehicles) needs internal cabling robust enough to handle external vibrations without compromising measurement accuracy.

Key Factors Influencing Micro Coax Vibration Performance

Maximizing Micro Coax Vibration Performance in Your Application

• ​Specify for the Environment: Clearly define vibration profiles (frequency, amplitude), temperature ranges, and other stressors.
• ​Choose Purpose-Built Cables: Select cable series explicitly designed and tested for high vibration resistance. Don’t assume all micro coax is equal.
• ​Prioritize Quality Construction: Look for cables built with high-density braid shields, stable fluoropolymer dielectrics, flexible annealed conductors, and robust jackets.
• ​Demand Certification Data: Require test reports from manufacturers showing compliance with relevant MIL-STD, IEC, or specific automotive (e.g., LV214) vibration standards.
• ​Ensure Proper Installation:
  • ​Secure Routing: Use clips, clamps, or cable ties at regular intervals to minimize unsupported lengths and prevent whipping or resonant motion. Adhesive anchors, spiral wraps, or convoluted tubing add stability.
  • ​Avoid Sharp Bends & Stress Points: Maintain minimum bend radii, especially near connectors.
  • ​Strain Relief: Always use appropriate strain relief (connector boots, overmolding) at termination points.
  • ​Minimize Flexing: Anchor cables securely near both ends if possible; avoid having long, loose runs susceptible to sway.
• ​Consider Active Damping (For Critical Apps): Explore isolating mounts for sensitive equipment or specialized vibration-damping conduits/trays in extreme situations.

The Bottom Line: An Engineering Imperative

Vibration resistance is not an optional luxury for micro coaxial cables in modern engineering; it’s a foundational requirement for reliability in countless demanding applications. Understanding the mechanisms, relevant standards (like MIL-STD-202G and IEC 60068-2-64), and selection/installation best practices empowers engineers to build systems that perform flawlessly under duress. By prioritizing cables engineered to withstand the test of motion, manufacturers ensure signal integrity, extend product lifespans, reduce costly field failures, and guarantee safety and performance where it matters most. When specifying micro coax for anything beyond benign environments, the vibration resistance question must be answered definitively.
