KEL’s Micro Coaxial Cable solutions are at the forefront of modern electronic connectivity, offering exceptional performance in high-speed data transmission, miniaturization, and reliability. These connectors are integral to various applications, including 5G networks, IoT devices, AI systems, consumer electronics, medical devices, automotive electronics, industrial equipment, aerospace and defense, communication equipment, and embedded systems.
KEL Micro Coaxial Cable Product Series Overview
KEL offers a diverse range of micro coaxial cable connectors, each tailored to meet specific industry requirements:
TSL Series: Featuring a 0.55 mm pitch, the TSL series supports 32 Gbps high-speed differential transmission over lengths up to 1,000 mm. Its optimized connector design ensures minimal loss and skew, making it ideal for applications in 5G, IoT, and AI.

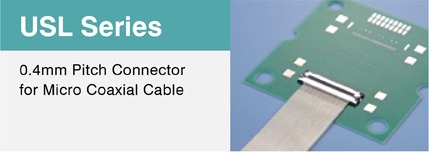

USL Series: With a 0.4 mm pitch and insulation-displacement connector (IDC) design, the USL series offers improved connection reliability and compactness, contributing to device miniaturization.

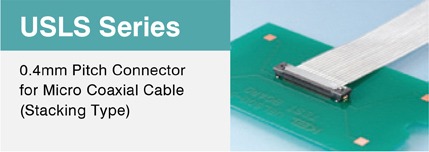

USLS Series: This low-profile stack mating type connector boasts a 0.4 mm pitch, providing easy stack mating and lead-free IDC design, suitable for compact devices.

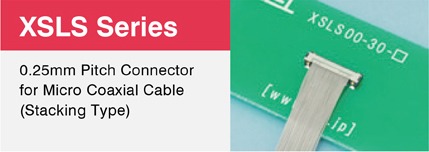

XSLS Series: At a 0.25 mm pitch, the XSLS series is an ultra-compact, stack mating connector. Its bottom surface is covered with resin, allowing wiring patterns directly underneath, saving valuable board space.

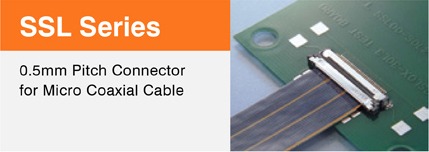

SSL Series: This 0.5 mm pitch IDC connector offers both vertical and horizontal mating options. A metal shell enhances noise reduction and product strength, ensuring reliable performance.
ASLS series: This 0.4 mm pitch connector for micro coaxial cables/Stacked mating type. Compact connector with a mounting height of 1.65mm and a mating width of 2.80mm.

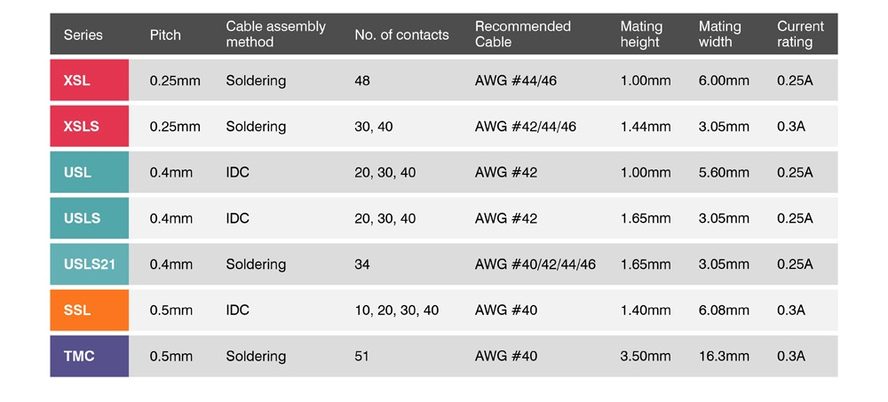

KEL Board to Fine Micro Coaxial Cable
KEL Micro Coaxial Cable Technical Features
KEL’s micro coaxial cable connectors are designed with several key technical features:
High-Speed Differential Transmission: Supporting data rates up to 32 Gbps, these connectors meet the demands of modern high-speed applications.
Optimized Connector Design: Careful material selection and structural design ensure impedance control, resonance suppression, and noise reduction, leading to superior signal integrity.
Multi-Point Grounding: Enhanced noise suppression and electromagnetic compatibility (EMC) are achieved through multiple grounding points, reducing electromagnetic interference (EMI).
Low Insertion Loss and Skew: The combination with high-performance coaxial cables results in minimal signal loss and skew, ensuring reliable data transmission.
High Flexibility: These connectors’ flexible design allows for easy routing in compact devices, accommodating various design requirements.
Robust Lock Mechanism: A secure lock mechanism with a tactile click and pull tape facilitates easy and reliable insertion and removal, simplifying assembly and maintenance.

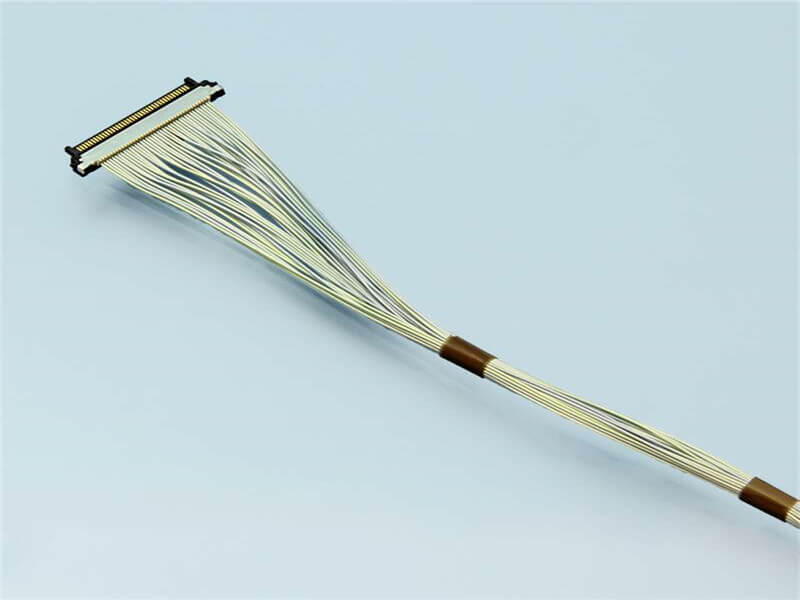

KEL Micro Coaxial Cable-4

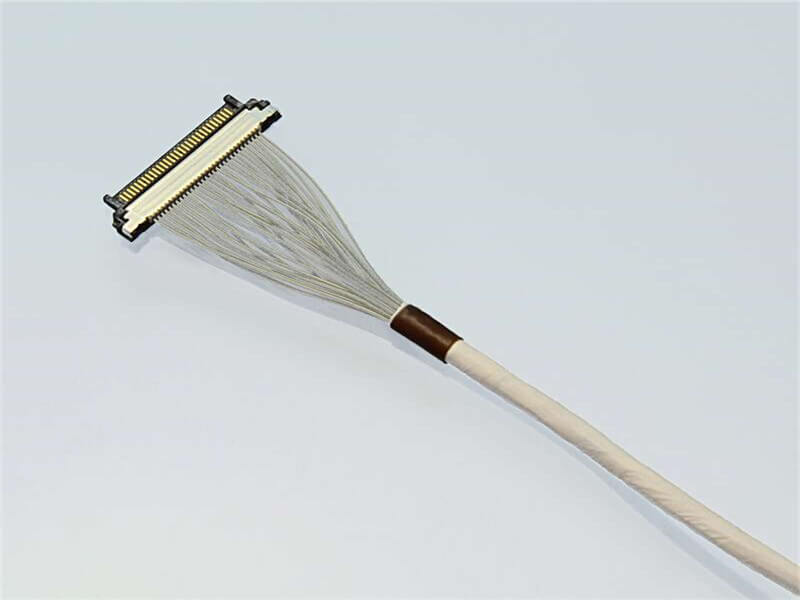

KEL Micro Coaxial Cable-2
Applications
The versatility of KEL’s micro coaxial cable connectors makes them suitable for a wide range of applications:
5G Networks: High-speed data transmission capabilities support the rapid data rates required in 5G infrastructure.
IoT Devices: Compact and reliable connectors are essential for the seamless integration of IoT devices in various environments.
Artificial Intelligence (AI) Systems: The need for swift data processing in AI applications is met by these high-performance connectors.
Consumer Electronics: Devices like smartphones and tablets benefit from the miniaturization and high-speed capabilities of these connectors.
Medical Devices: Reliable and compact connections are crucial in medical equipment, ensuring consistent performance.
Automotive Electronics: In-vehicle communication systems require connectors that can withstand various conditions while maintaining performance.
Industrial Equipment: Automation and control systems rely on dependable connectors for efficient operation.
Aerospace and Defense: High-reliability connections are essential in these sectors, where performance is critical.
Communication Equipment: Routers, switches, and other networking devices benefit from the high-speed capabilities of these connectors.
Embedded Systems: Compact and integrated electronic systems require connectors that support efficient data transmission.

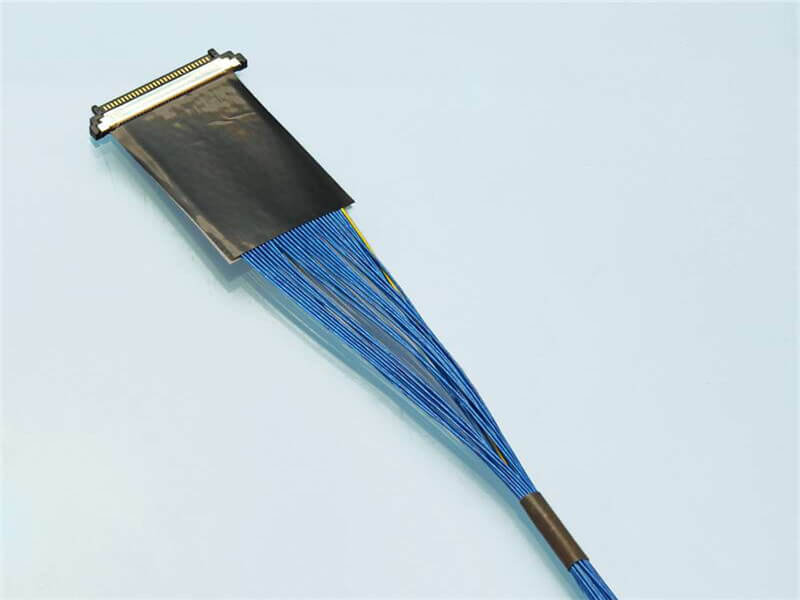

KEL Micro Coaxial Cable-3

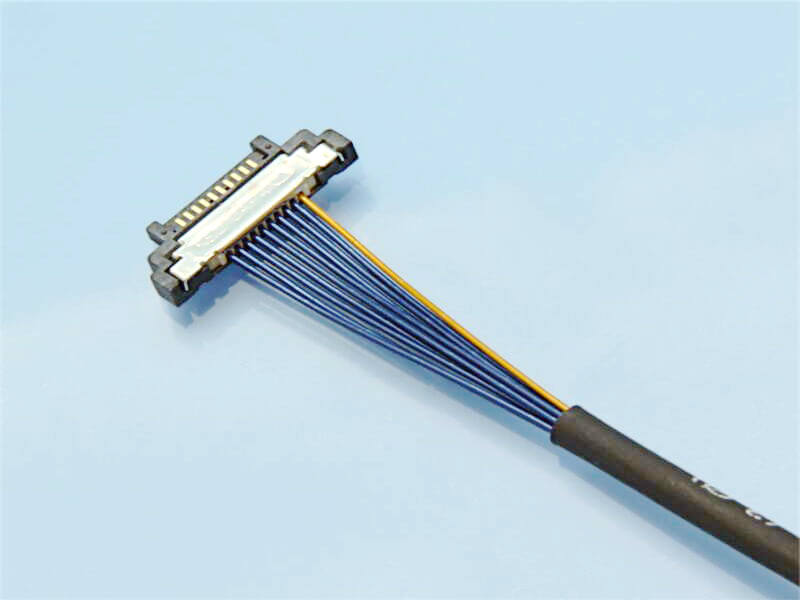

KEL Micro Coaxial Cable-1
Market Demands
KEL’s micro coaxial cable connectors address several key market demands:
High-Speed Data Transmission: The increasing need for rapid data transfer is met by these connectors’ high-speed capabilities.
Miniaturization: As electronic devices become smaller, these connectors’ compact design supports this trend.
Lightweight Design: Reducing device weight is facilitated by the lightweight nature of these connectors.
Custom Cable Assemblies: KEL offers tailored solutions to meet specific application requirements, enhancing design flexibility.
