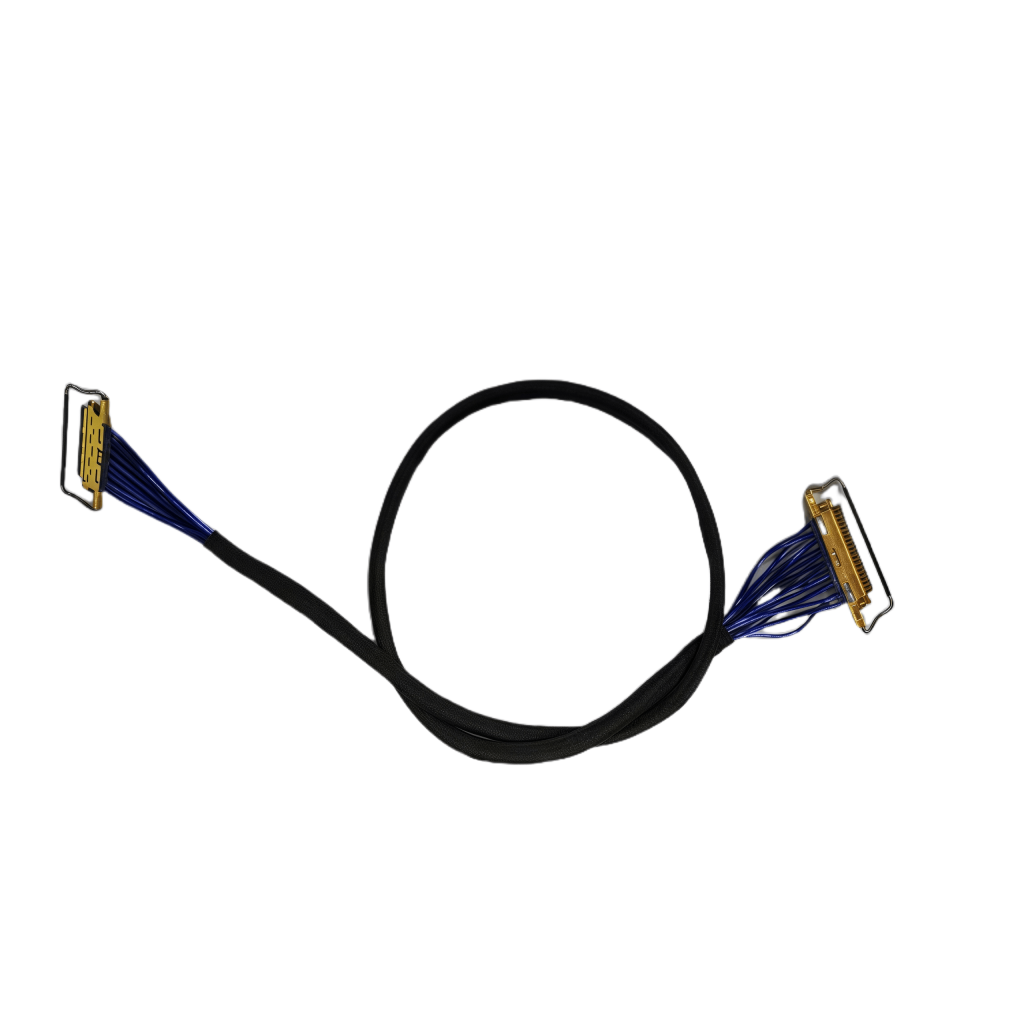

Working with micro coaxial cables (common in electronics, drones, cameras, medical devices, and communications) requires precision tools due to their tiny size and delicate construction. Using the wrong tools can easily damage the cable, ruin connectors, or lead to poor signal performance. Here’s exactly what you need:
Essential Tools:
Precision Wire Strippers (Micro-Coax Specific):
Why: Most critical tool. Standard wire strippers are too crude. You need strippers designed specifically for the exact diameter of micro coax you are using (e.g., 0.81mm, 1.13mm, 1.37mm).
Function: Cleanly removes the outer jacket without nicking the delicate shielding braid underneath. Good ones have micrometer adjustments for perfect blade depth control.
Look for: Strippers with replaceable blades, size markings, and positive stops.
Precision Cable Cutters:
Why: Ensures a clean, square cut on the cable end, which is vital for proper connector termination and signal integrity.
Function: Cuts the micro coax cleanly without crushing or deforming it. Use flush-cut electronics cutters specifically designed for small wires and cables.
Tweezers (Fine Point, Non-Magnetic):
Why: Essential for handling tiny components, positioning the stripped cable end in connectors, and managing solder.
Function: Provides the dexterity needed to manipulate small parts safely. Anti-magnetic (stainless steel) types are best to avoid interfering with components.
Tip: Curved and straight tips are both useful. ESD-safe tweezers offer extra protection for sensitive electronics.
Magnification:
Why: Micro coax and its connectors are extremely small. Good magnification is non-negotiable to see what you’re doing clearly and avoid mistakes.
Options: Head-mounted magnifying visors (most versatile, hands-free), bench-mounted magnifier lamps, or high-magnification magnifying glasses. Choose based on comfort and task. 3x to 5x magnification is often sufficient, sometimes higher is needed.
Fine Tip Soldering Iron & Accessories:
Soldering Iron: Requires a temperature-controlled iron with a very fine tip (often conical or chisel tips in the 0.8mm to 1.5mm range). Precision work demands precise heat control.
Solder: Use thin diameter rosin-core solder (e.g., 0.5mm or 0.6mm). Lead-free (Sn96.5/Ag3/Cu0.5) is common, but Sn63Pb37 is often easier for hand soldering.
Solder Wick/Braid: Essential for removing excess solder or fixing mistakes (e.g., solder bridges on tiny connector pins). Choose narrow widths (1.0mm-2.0mm).
Flux (Pen/Paste): Essential! Applied before soldering, flux cleans surfaces, promotes wetting, and improves solder flow, leading to reliable joints. Use no-clean flux suitable for electronics.
Multimeter:
Why: To check for continuity (ensuring wires aren’t broken inside) and to detect shorts before applying power.
Function: Basic continuity test and resistance measurement mode is crucial for verifying your cable hasn’t been damaged during prep or termination.
Highly Recommended Tools:
Connector Crimp Tool (Specific to Connector Type):
Why: If using crimp-style connectors (like some micro MCX, MMCX, SMP), a precision crimp tool designed exactly for that connector series is mandatory. Generic crimpers will not work correctly.
Function: Applies the right pressure in the right places to secure the connector onto the cable without crushing it.
ESD (Electrostatic Discharge) Protection:
Why: Micro coax installations are often done on sensitive electronic components that can be damaged by static electricity.
Items: Wrist strap connected to ground, ESD-safe mat under your work, ESD-safe tweezers/tools. Protects your expensive gear.
Helpful Accessories & Consumables:
Heat Shrink Tubing:
Why: Provides strain relief, insulation, and protection after soldering or crimping. Use very small diameters (1mm – 2mm is common).
Tip: Slide it onto the cable before soldering the connector!
Isopropyl Alcohol (90%+) and Swabs:
Why: For cleaning flux residue (though no-clean flux is preferable) and oils/dirt from work areas or connectors.
Sharp Craft Knife / Hobby Knife:
Why: Useful for carefully scraping away excess solder flux, carefully trimming stray shield strands, or very carefully scoring the outer jacket if specific precision strippers aren’t available (use extreme caution not to cut the shield!).
Helping Hands / PCB Holder:
Why: Holds the PCB or connector securely while you work with both hands, freeing you to solder and position the cable.
Key Tips for Success:
Identify Your Cable Size: Know the exact diameter (e.g., RG178, RG316) – this dictates your stripping tool requirements.
Identify Your Connector Type: Know if it’s a solder cup, crimp type, or PCB edge connector – this dictates termination tools.
Practice First: Before tackling your critical project, practice stripping and terminating on a scrap piece of the same cable.
Patience is Vital: Rushing leads to broken cables and ruined connectors.
Inspect: Use magnification frequently to inspect your work during stripping and soldering.
By investing in the right precision tools and techniques, micro coax installation becomes manageable and yields reliable, high-performance results. Good luck!
