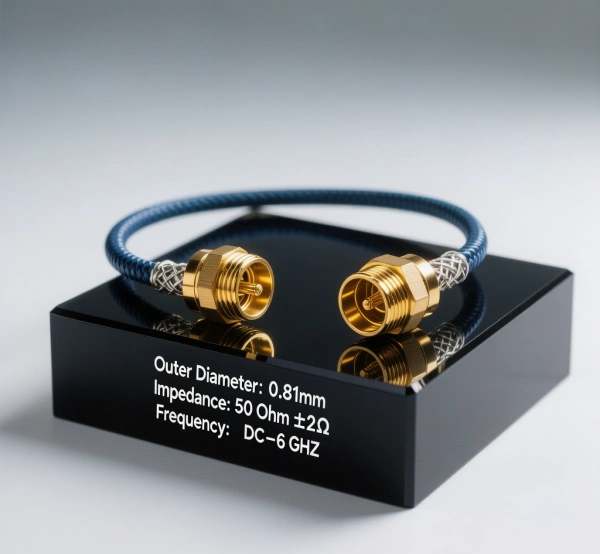

1. What Is a Micro Coaxial Cable?
A micro coaxial cable is an ultra-miniature, high-precision coaxial transmission cable designed for high-frequency RF signals and high-speed data transmission in space-constrained electronic devices. Unlike standard coaxial cables, micro coax features an extremely small outer diameter (OD), typically ranging from 0.22mm to 2.0mm, with ultra-thin insulation and tightly woven shielding structures .
Engineered to balance miniaturization, signal stability and mechanical flexibility, micro coaxial cables solve the core pain points of traditional cables: bulky size, poor bending resistance, and severe signal interference in compact equipment. They strictly control impedance accuracy (50Ω/75Ω standard) to ensure zero signal distortion in high-frequency working scenarios, becoming the core connection component for modern miniaturized high-precision electronics .
2. Core Structure & Working Principle of Micro Coaxial Cable
The structure of micro coaxial cables follows the classic coaxial design but adopts ultra-fine precision manufacturing, consisting of four core layers from inside to outside, which jointly guarantees excellent transmission performance:
- Inner Conductor: Adopts high-purity tinned copper or silver-plated copper material. Silver-plated conductors effectively reduce high-frequency resistance and signal loss, suitable for aerospace and high-end medical precision equipment; tinned copper is cost-effective for commercial consumer electronics .
- Dielectric Insulation Layer: Uses high-performance PFA insulating material, with high temperature resistance (up to 260°C), stable dielectric constant, and low capacitance characteristics. It maintains stable electrical performance in extreme temperature environments and avoids signal attenuation caused by insulation aging .
- Shielding Layer: Precision braided copper mesh or full coverage shielding structure, achieving excellent EMI/RFI shielding effect. It effectively isolates external electromagnetic interference and prevents internal signal leakage, ensuring ultra-low noise signal transmission .
- Outer Jacket: Flexible, wear-resistant and RoHS-compliant polymer jacket, with strong bending resistance and tensile properties, adapting to frequent bending and narrow space wiring of precision equipment.
Working principle: The inner conductor transmits high-frequency signals, and the layered shielding structure isolates interference. The uniform dielectric layer ensures consistent impedance, realizing low-loss, low-noise, high-stability high-speed data and RF signal transmission .
3. Key Features & Advantages of Micro Coaxial Cables
Compared with ordinary coaxial cables and common wire harnesses, micro coaxial cables have irreplaceable technical advantages, which are the core reasons for their wide application in high-end precision industries:
- Ultra-Miniature Size & High Space Utilization: The ultra-fine OD design (0.22mm–2.0mm) perfectly adapts to the ultra-narrow internal space of wearable devices, AR/VR equipment, miniature medical devices, and compact industrial cameras, helping equipment achieve lightweight and miniaturized design .
- Low Signal Loss & High Signal Integrity: Strict impedance control (50Ω/75Ω) and high-quality shielding structure greatly reduce insertion loss and VSWR value. It supports stable transmission of high-frequency signals up to 6GHz, ensuring no distortion for MIPI, eDP, RF antenna and high-speed data signals .
- Superior Flexibility & Long Flex Life: Optimized wire structure and flexible jacket material enable the cable to withstand frequent bending and folding. It is not easy to break or damage during long-term use, meeting the dynamic wiring needs of movable precision equipment .
- Strong Environmental Adaptability: High temperature resistance, wear resistance, corrosion resistance, and waterproof performance. It works stably in harsh industrial, aerospace and medical sterilization environments, with long service life and low failure rate .
- Low EMI & High Anti-Interference Ability: Full coverage shielding layer effectively suppresses electromagnetic interference, ensuring stable signal transmission in complex electromagnetic environments and avoiding equipment operation failure caused by signal noise .
- Full Compliance Certification: All products comply with RoHS, UL, ISO9001 and other international standards, with safe and environmentally friendly materials, meeting the export standards of global electronic products .
4. Common Types & Specifications of Micro Coaxial Cables
Micro coaxial cables are classified by specifications, impedance and connector types, covering all mainstream application scenarios in the market. The most widely used models in the industry are as follows:
4.1 Mainstream Cable Models
- 1.13mm/1.32mm U.FL Micro Coax: The most popular consumer electronic model, matched with U.FL connectors, widely used in WiFi, Bluetooth, GPS antenna connection of mobile phones, tablets and IoT devices .
- RG174/RG178/RG316 Micro Coaxial Cable: Classic low-loss RF micro coax, 50Ω standard impedance, suitable for medium and high frequency RF signal transmission, industrial detection and communication equipment .
- Ultra-Fine 0.22mm–0.81mm Micro Coax: Super miniature specification, specially customized for high-end precision equipment such as medical endoscopes, AR/VR modules and micro sensors .
4.2 Matching Connector Types
Support mainstream precision connectors in the industry:I-PEX, Hirose, JAE, U.FL, MHF4, SMA, which can be customized according to customer equipment interface requirements to realize plug-and-play assembly .
4.3 AWG Specification Classification
Common AWG specifications include 32AWG, 34AWG, 36AWG to 46AWG. The higher the AWG value, the finer the cable diameter, which is selected according to equipment space and signal transmission requirements .
5. Wide Applications of Micro Coaxial Cables
Relying on miniaturization, high stability and high-speed transmission characteristics, micro coaxial cables cover multiple high-end industries, becoming an indispensable core component of precision electronic equipment:
- Consumer Electronics: Laptops, tablets, wearable watches, AR/VR devices, camera modules, MIPI/eDP display high-speed signal connection .
- Medical Equipment: Medical endoscopes, surgical instruments, imaging equipment, portable medical detectors. Medical-grade micro coax is biocompatible, sterilizable and stable in long-term medical scenarios .
- 5G & IoT Communication: 5G miniature base stations, IoT sensors, smart wearable devices, GPS positioning equipment, WiFi antenna signal transmission .
- Aerospace & Defense: Aerospace precision instruments, military communication equipment, satellite sensing devices, requiring ultra-low loss, high temperature resistance and high reliability .
- Industrial Precision Equipment: Industrial cameras, automated detection sensors, robotic precision control modules, adapting to complex industrial working environments .
6. How to Choose the Right Micro Coaxial Cable? (Professional Selection Guide)
Many buyers face selection confusion due to numerous micro coax specifications. Follow these 4 core standards to quickly select the most suitable product:
- Confirm Impedance Requirements: 50Ω is suitable for RF communication, antenna and high-frequency signal scenarios; 75Ω is mainly used for video signal and broadcast transmission scenarios .
- Match Cable Diameter & Space: Select 0.22mm–0.81mm ultra-fine models for ultra-narrow space equipment; select 1.13mm–2.0mm conventional models for ordinary precision equipment to balance stability and cost .
- Focus on Working Frequency & Loss: For high-frequency (above 3GHz) and high-speed data transmission scenarios, prioritize low-loss silver-plated conductor micro coax to avoid signal attenuation .
- Consider Environmental & Bending Requirements: Frequent bending scenarios require high-flex customized cables; high temperature, corrosion and sterile environments need to select corresponding high-grade certified products .
7. Why Choose Custom Factory Micro Coaxial Cables?
Most off-the-shelf micro coaxial cables have single specifications and cannot meet the personalized needs of high-end equipment. As a professional micro coaxial cable OEM/ODM factory, we have obvious advantages over ordinary distributors and middlemen:
- Full Customization Capability: Customize cable diameter, impedance, length, connector type, wire color and shielding structure according to drawings and samples, supporting exclusive solution development for special equipment .
- Strict Quality Control: 100% testing of signal loss, impedance accuracy and bending performance before delivery, ISO9001 quality system certification, stable and reliable product quality .
- Cost-Effective Factory Direct Supply: No middlemen markup, competitive wholesale price, support low MOQ small batch trial order and large batch bulk order .
- Fast Delivery & Professional Service: Sufficient conventional product inventory, rapid customization of non-standard products, providing one-stop solution design, technical consultation and after-sales service .
- Full Certification Support: All products pass RoHS, UL and other international certifications, supporting global customer export demand .
8. FAQ About Micro Coaxial Cables
Q1: What is the difference between micro coaxial cable and ordinary coaxial cable?
Micro coaxial cable features smaller diameter, higher flexibility, more precise impedance control and lower signal loss, suitable for miniaturized precision equipment; ordinary coaxial cables are large in size, poor in flexibility, and only suitable for conventional large-scale communication equipment and fixed wiring scenarios .
Q2: Are micro coaxial cables suitable for high-temperature working environments?
Yes. Our micro coax adopts PFA high-temperature resistant insulating material, which can work stably in the temperature range of -60°C to 260°C, adapting to high-temperature industrial and aerospace scenarios .
Q3: Can you provide customized micro coaxial cable assemblies?
Absolutely. We support full-process customization of cable harness assemblies, including welding and assembly of various precision connectors, providing finished harness products that can be directly installed and used .
Q4: What is the MOQ for custom micro coaxial cables?
We support low MOQ trial orders for customized products, and conventional standard products are in stock with immediate delivery, which can fully meet the needs of sample testing, small-batch trial production and large-batch mass production of customers .
9. Final Summary
As the core connection component of modern miniaturized high-precision electronic equipment,micro coaxial cable stands out in the industry with ultra-fine size, low loss, high flexibility and strong anti-interference performance. It covers full-scene applications from consumer electronics, 5G IoT to medical and aerospace fields, and is an indispensable key material for realizing high-speed signal transmission and equipment miniaturization upgrade.
If you are looking for high-quality, customizable, cost-effective micro coaxial cables and cable assemblies, welcome to contact our professional factory team. We will provide you with free sample testing, professional technical solution guidance and customized OEM/ODM services to support your project development and mass production.
