hielding Secrets: How MRI Micro-Coaxial Cables Fight Noise for Cleare...

Magnetic Resonance Imaging (MRI) is a marvel of modern medicine, peering deep inside the body with unprecedented detail. But achieving those crystal-clear images relies on incredibly sensitive electronics. The tiny signals traveling through cables within the scanner’s bore face a hostile environment – a storm of electromagnetic interference (EMI) and radiofrequency interference (RFI) generated by the powerful magnets and rapidly switching gradient coils. That’s where the unsung hero, the ​micro-coaxial cable, and its critical ​shielding effectiveness, come into play.

Why is Shielding So Crucial Inside an MRI?

Imagine trying to listen to a whisper at a rock concert. That’s analogous to the challenge faced by MRI signals. Here’s why EMI/RFI shielding is non-negotiable:

1. ​The RF Noise Storm: The MRI scanner itself operates using powerful RF pulses to excite atoms. Nearby gradient coils also generate intense, rapidly changing electromagnetic fields. This creates massive amounts of EMI/RFI.
2. ​Vulnerable Signals: The signals generated by the patient’s body (like those picked up by receiver coils) are extremely weak, often just microvolts or nanovolts. Any interference picked up by the cables carrying these signals acts like static on a radio, overwhelming the delicate data.
3. ​Image Quality Impacts: Inadequate shielding directly leads to:
   • ​Noise and Artifacts: Static, streaks, or “ghosting” obscuring anatomical detail.
   • ​Reduced Signal-to-Noise Ratio (SNR): Blurrier, lower-contrast images, making diagnosis harder.
   • ​Distortion: Misrepresentation of structures or signal intensities.
4. ​Patient Safety: EMI can potentially disrupt the precise timing of RF pulses or gradient switching, though robust system design mitigates most risks. Nevertheless, signal integrity is paramount for safe and accurate operation.

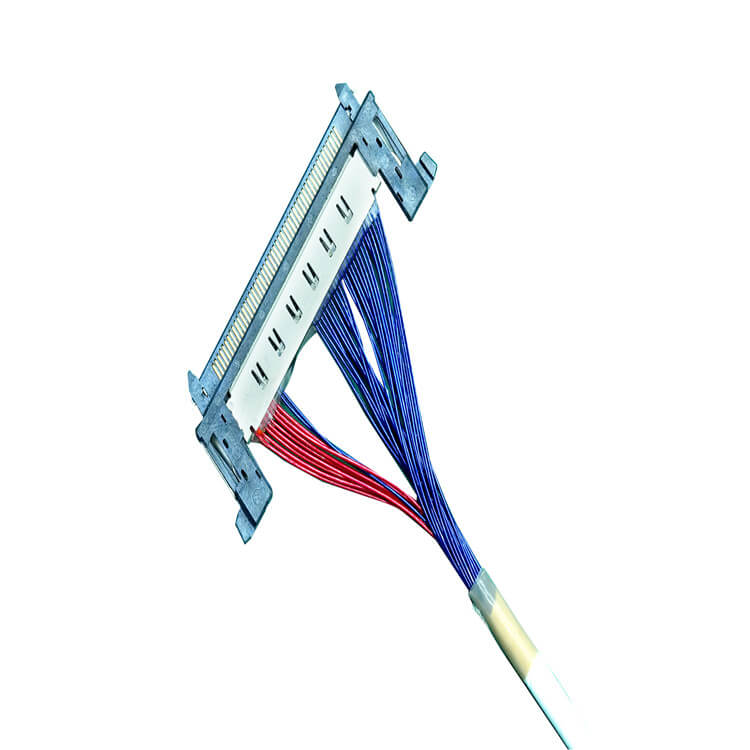

How MRI-Compatible Micro-Coaxial Cables Achieve Shielding Effectiveness

“Shielding Effectiveness” (SE) is the measure of how well a cable’s shield blocks external interference. It’s usually expressed in decibels (dB). For example, a shield with 60 dB effectiveness reduces the incoming interference signal by a factor of 1000. MRI demands exceptionally high SE.

MRI micro-coaxial cables employ sophisticated shielding strategies:

1. ​Dual-Layer Shielding (Common): Provides superior protection compared to single layers.
   • ​Inner Braid: A tightly woven mesh of thin conductive wires (often silver-plated copper or copper alloy like tinned copper) offering flexibility and good high-frequency coverage.
   • ​Outer Braid or Foil: An additional braid for maximum coverage or a metallic foil tape (often aluminum with drain wire) that provides 100% coverage but is less flexible. The combination covers a wider range of interference frequencies and types.
2. ​Tri-Shielding (High-End): For ultra-demanding scenarios near very strong gradient fields.
   • ​Foil + Double Braid: Adds a foil layer under two braided layers, creating three conductive barriers. Maximizes SE, especially at higher frequencies generated by fast-switching gradients.
3. ​Material Matters:
   • ​Conductivity: Materials like silver-plated copper offer excellent conductivity, improving shielding performance and minimizing signal loss (attenuation) within the cable itself. Nickel-Copper alloys (e.g., MuMetal) offer excellent magnetic shielding (lower frequency) but lower conductivity.
   • ​Compatibility: Materials must be non-magnetic and non-conductive (non-metallic jackets) to ensure MRI safety (no attraction forces) and prevent artifacts.

Factors Influencing Shielding Effectiveness in MRI Cables

• ​Shield Construction: Type (braid, foil, dual, tri), density (percentage of coverage for braids), and material conductivity directly impact SE. Tighter braids and multi-layer designs offer higher dB ratings.
• ​Frequency: Shields behave differently at different frequencies. MRI systems generate interference across a broad spectrum (kHz to MHz, even GHz for high-field systems). The cable shield must be effective across the relevant bandwidths. Tri-shields excel at very high frequencies.
• ​Integrity Over Time: Connectors must maintain a continuous 360-degree conductive connection to the shield. Kinks, crushing, or flexing damage can compromise the shield’s continuity and drastically reduce SE. High-flex designs are essential.
• ​Grounding: The shield must be properly grounded at the system end to provide a path for the intercepted interference currents to safely dissipate. Improper grounding renders even the best shield ineffective.

Why “MRI-Compatible” is More Than Just a Label

Not all shielded coaxial cables are suitable for MRI. True MRI compatibility requires:

1. ​Non-Magnetic Materials: Avoiding ferromagnetic metals prevents dangerous projectile forces and artifacts.
2. ​Safety Certification: Compliance with standards like ASTM F2503 (marking) is essential.
3. ​Bio-compatibility: Materials contacting patient skin or fluids must be suitable.
4. ​Tailored Performance: Cables specifically engineered for high SE, low signal loss (attenuation), and durability within the unique MRI electromagnetic environment and physical constraints (tight bends, patient bore proximity).

Choosing the Right Micro-Coaxial Cable: Key Questions

When specifying cables for an MRI system (especially for receiver coils or intra-bore components), demand clear information:

1. ​Shielding Level: “What is the quantified Shielding Effectiveness (in dB) across the relevant frequency bands (e.g., 10 MHz – 1 GHz+) for this specific cable?”
2. ​Shielding Construction: “What is the exact shield construction? (e.g., Dual Braid, Braid+Foil, Tri-Shield) What materials are used?”
3. ​Flexibility: “Is the cable designed for repeated flexing and tight bend radii encountered in clinical use?”
4. ​Connector Shielding: “How is the 360-degree shield connection maintained at the connector?”
5. ​MRI Compatibility: “Can you provide documentation verifying non-magnetic materials, safety certifications (ASTM F2503), and bio-compatibility (if applicable)?”
6. ​Loss Characteristics: “What is the signal attenuation (loss) per unit length at key frequencies?”
