Is erratic data transmission plaguing your high-speed device? Are unexplained signal errors, flickering video, or unexplained system resets driving you to frustration? The culprit is often ​Electromagnetic Interference (EMI), silently degrading the signals carried by your micro-coaxial cables. In the demanding landscape of modern electronics—where sleek devices push data rates higher, operating frequencies soar, and circuits are packed tighter—diagnosing and eliminating EMI in micro-coaxial cabling is no longer optional; it’s critical for reliability and compliance.

This comprehensive guide delivers the targeted techniques and expert-level insights you need to isolate and conquer EMI issues plaguing your micro-coaxial connections. Master troubleshooting and ensure your designs meet stringent EMC requirements.

Understanding the Micro-Coaxial EMI Battlefield

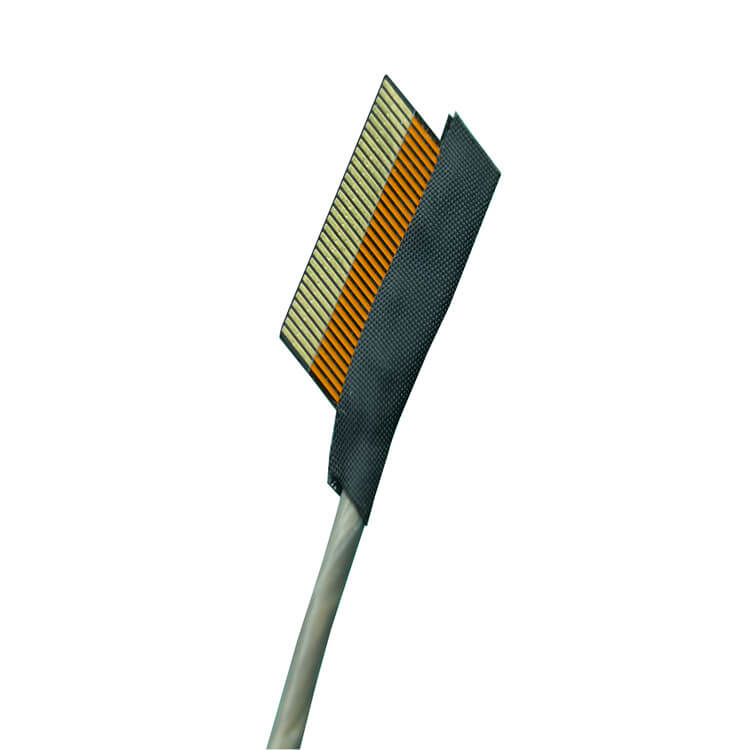

Micro-coaxial cables, prized for their controlled impedance and inherent shielding for high-frequency signals, are the lifelines connecting camera modules to processors in smartphones, linking radar units in ADAS-equipped vehicles, ferrying critical data in medical imaging systems, and enabling high-speed USB or HDMI connections. Yet, they remain vulnerable to EMI’s insidious effects:

• ​Signal Degradation: Increased Bit Error Rates (BER), signal distortion, timing jitter, or amplitude loss.
• ​Cross-Talk: Unwanted signal coupling between adjacent lines within a bundle or across connectors.
• ​Functional Failures: System crashes, erratic behavior, intermittent video/audio, corrupted data transfers.
• ​EMC Non-Compliance: Failure to meet FCC Part 15, CISPR 32, EN 55032 (Emissions), EN 55035 (Immunity), or other relevant standards.

Identifying Micro-Coaxial EMI Culprits: Systematic Troubleshooting

Diagnosis requires a methodical approach. Isolate the problem area before diving deep:

1. ​Symptoms & Context Analysis: Document specific failures, operational modes affected, and recent changes (design, firmware, environment).
2. ​Signal Integrity Measurement: Use a high-bandwidth oscilloscope to probe affected signals. Look for increased noise floor, overshoot/undershoot distortion, excessive jitter, or signal amplitude loss. Compare against known-good traces.
3. ​EMI Diagnostics: Locating the Leak
   • ​Near-Field Probes: Your primary investigation tool. Use magnetic (H-field) probes to find current loops (“hot spots”) and electric (E-field) probes to detect capacitive leakage. Systematically scan along the micro-coaxial cable length (including bends), connectors, PCB landing areas, and associated ground planes.
   • ​RF Current Probes: Clamp around cable shield/conductor near connectors to measure RF currents directly entering/exiting – potent indicators of shield efficacy and unwanted antenna behavior.
   • ​Spectrum Analyzer: Integrate near-field probes with a spectrum analyzer to correlate EMI peaks observed in full compliance testing to specific physical locations on your micro-coaxial assembly. Identify problematic resonant frequencies.
4. ​Shield Integrity Assessment: Micro-coaxial shield continuity is paramount.
   • ​Microscopic Inspection: Magnify shield terminations at connectors under high magnification. Check for cold solder joints, fraying strands, inadequate shield 360-degree contact, or damage from bending/strain. Assess connector housing grounding.
   • ​DC Ohmmeter (Tier 1): A quick check of shield continuity end-to-end and to connector shell/ground pad. Values > few ohms indicate a break.
   • ​Transfer Impedance Measurement (Tier 2 – Best Practice): Quantifies shield effectiveness at RF frequencies. High Zt implies poor shielding. Requires specialized fixtures but is the gold standard.
5. ​Connector & Termination Scrutiny: Often the weakest link.
   • ​Impedance Mismatch: Poorly soldered center conductors, damaged dielectric during stripping, or improper connector design disrupts controlled impedance. Use Time Domain Reflectometry (TDR) to locate discontinuities and measure impedance variations.
   • ​Grounding Continuity: Ensure solid low-impedance connection from connector shell to PCB ground plane via adequate stitching vias, not just ground pads. Measure shell-to-ground resistance. Ground loops can also be entry/exit points.
6. ​System-Level Considerations:
   • ​Ground Plane Strategy: Verify continuous low-noise grounds under micro-coaxial routes. Stray return currents pollute signals. Avoid splits forcing currents around gaps.
   • ​Adjacency to Noise Sources: Power regulators, clocks, digital buses radiating into or coupling onto micro-coaxial cables? Near-field probing reveals proximity effects. Evaluate shielding effectiveness of surrounding metal structures.
   • ​Impedance Discontinuities: Sharp bends, tight twists, untethered connectors introducing reflections? Observe TDR and signal integrity impact.
   • ​Filtering: Are appropriate HF filters (capacitors, ferrites) present where micro-coax cables interface with sensitive circuits? Assess effectiveness.

Fixing Micro-Coaxial EMI Issues: Practical Solutions

Armed with diagnostic data, implement targeted fixes:

1. ​Maximize Shield Performance:
   • ​Connector Mastery: Select connectors offering complete (360-degree) seamless shield termination mechanisms. Double-shielded designs (e.g., shielded jacket plus metal connector shell) offer superior defense. Verify termination force specs and ensure precise assembly.
   • ​Shield Termination Redundancy: Implement redundant grounding contacts (clips, solder tabs) on the shield within the connector housing.
   • ​High-Performance Cables: Upgrade to micro-coax with higher braid coverage (95%+), thin foil/shield composites, or specialized multi-layered shields where necessary. Understand Zt curves.
2. ​Optimize PCB Design Interactions:
   • ​Solid Grounding: Provide immediate, low-inductance connections (plenty of grounding vias) directly from the connector shell pins/pad to a robust internal ground plane.
   • ​Impedance Continuity: Design PCB traces leading to/from micro-coaxial connectors to match cable impedance meticulously. Minimize stub lengths. Avoid non-functional pads (NFPs).
   • ​Local Shielding: Consider compact low-profile shields (“cans”) soldered to the ground plane over the connector and sensitive circuits.
3. ​Cable Routing Best Practices:
   • ​Path Optimization: Route micro-coaxial cables away from known noise sources (power inductors, high-speed digital lines) or shield noise sources locally. Maintain distance.
   • ​Minimize Length: Use only the required cable length; excess acts as an antenna. Avoid coiling excess length.
   • ​Gentle Bending: Respect the cable’s minimum bend radius (typically 6-8x diameter) to prevent shield deformation and impedance disturbance. Use strain relief fixtures.
4. ​Strategic Filtering & Grounding:
   • ​EMI Suppression at Ports: Apply ferrite beads/chokes or common-mode chokes directly on the micro-coax line immediately outside or inside the connector. Test effectiveness across relevant frequency bands. Use feedthrough capacitors on ground connections carefully.
   • ​Ground Loop Mitigation: Where feasible, use isolated power/ground domains for susceptible analog circuits connected via micro-coax. Ensure single-point grounding paths for shields in complex systems.

Essential Tools for Success: Build Your EMI Arsenal

Equip yourself for effective diagnosis:

• ​High-Bandwidth Digital Storage Oscilloscope: (1 GHz+ bandwidth recommended) – Essential for signal integrity analysis.
• ​Near-Field Probe Set: (H-Field & E-Field) – Pinpoints EMI radiation sources.
• ​RF Spectrum Analyzer: Correlates field measurements with emission spectra. Options from USB dongles (e.g., TinySA) to benchtop units.
• ​VNA (Vector Network Analyzer): Critical for characterizing shield performance (Transfer Impedance), connector S-Parameters, and cable impedance.
• ​TDR (Time Domain Reflectometer): Standalone or oscilloscope-based module. Reveals impedance discontinuities, breaks, and reflections.
• ​Quality Multi-Meter: DC continuity/resistance checks.
• ​Stereo/Microscope: Detailed inspection of terminations and solder joints.

Proactive Prevention: The Best Kind of Troubleshooting

• ​Design for EMC: Incorporate EMC principles from the outset, focusing on connector choice, grounding strategy, shield grounding, and filtering plan. Run EMI mitigation in Altium Designer or Allegro.
• ​Modeling & Simulation: Tools like ANSYS SIwave, CST Studio Suite, or Keysight ADS analyze potential coupling and shield effectiveness before manufacturing.
• ​Pre-Compliance Testing: Perform early EMI scans during development phases to catch issues when fixes are cheaper and easier. Identify problematic frequencies emitted by micro-coax assemblies.
