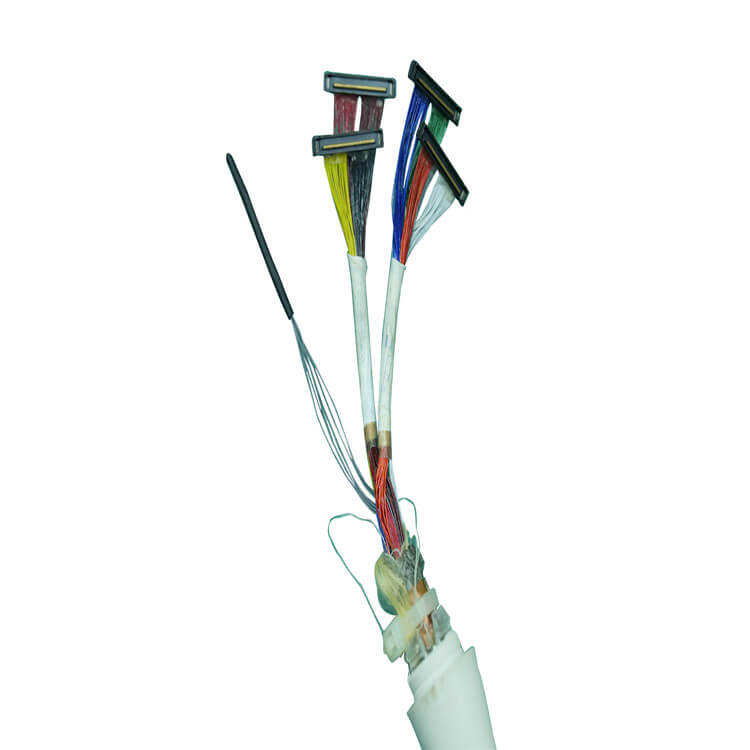

Selecting the right dielectric material for micro coaxial cables is critical for high-frequency performance, reliability, and cost-effectiveness. Polytetrafluoroethylene (PTFE) and Polyethylene (PE) are the two dominant contenders. Understanding their distinct properties and how they align with your application requirements is essential for optimal performance.

Understanding Dielectric Materials: The Core of Signal Integrity

The dielectric material separating the inner conductor from the outer shield in a micro coaxial cable plays a fundamental role:

• ​Insulation: Preventing electrical shorts.
• ​Signal Propagation: Influencing the speed and efficiency of signal transmission.
• ​Impedance Control: Critical for minimizing signal reflections (typically 50Ω or 75Ω).
• ​Loss Management: Determining how much signal power dissipates as heat over distance (attenuation).
• ​Phase Stability: Ensuring consistent signal timing, vital for phase-sensitive applications.

PTFE (Polytetrafluoroethylene): The High-Performance Standard

PTFE, commonly known by the brand name Teflon™, is renowned for its exceptional electrical and thermal properties, making it the preferred choice for demanding RF and microwave applications.

• ​Key Advantages:
  • ​Ultra-Low Loss: PTFE boasts the lowest dielectric loss (Dissipation Factor or tan δ ~0.0003 at 10 GHz) among common solid dielectrics. This translates to significantly lower signal attenuation, especially crucial at higher frequencies (microwave bands and above) and over longer cable lengths.
  • ​Stable Dielectric Constant (Dk): PTFE maintains a very stable and consistent dielectric constant (typically ~2.1) across a wide frequency range and temperature variations. This stability ensures predictable impedance and phase characteristics.
  • ​Excellent High-Temperature Performance: PTFE retains its properties at temperatures up to 200°C (392°F) or higher (depending on specific formulation), making it suitable for high-power applications and harsh environments.
  • ​Low Moisture Absorption: PTFE is highly hydrophobic, minimizing performance degradation in humid conditions.
  • ​Chemical Inertness: Highly resistant to almost all chemicals and solvents.
  • ​Flame Resistance: Naturally flame retardant.
• ​Key Disadvantages:
  • ​Higher Cost: PTFE material and the extrusion process are significantly more expensive than PE.
  • ​Processing Difficulty: PTFE requires specialized sintering processes, making manufacturing more complex.
  • ​Stiffness: Solid PTFE cables tend to be less flexible than PE cables, potentially impacting routing in tight spaces. (Note: Expanded PTFE variants like ePTFE offer improved flexibility).
  • ​Phase Stability under Flexing: While thermally stable, repeated bending can sometimes cause phase shifts in solid PTFE cables (expanded PTFE mitigates this).

PE (Polyethylene): The Cost-Effective Contender

Polyethylene is a widely used, economical dielectric material, commonly found in lower-frequency applications and consumer electronics.

• ​Key Advantages:
  • ​Lower Cost: PE material and processing are considerably cheaper than PTFE.
  • ​Good Flexibility: PE cables are generally more flexible and easier to handle and route than solid PTFE cables.
  • ​Good Low-Frequency Performance: Offers acceptable electrical properties (lower loss than many plastics) for frequencies typically below 1-3 GHz.
  • ​Ease of Processing: Relatively easy to extrude.
• ​Key Disadvantages:
  • ​Higher Loss: PE has a significantly higher dissipation factor (tan δ ~0.0005 – 0.001 or more at 10 GHz) compared to PTFE. This results in higher signal attenuation, becoming a major limitation at higher frequencies and longer lengths.
  • ​Dielectric Constant Variation: PE’s dielectric constant (typically ~2.3) is less stable than PTFE’s, especially with temperature changes. This can lead to impedance drift and phase instability.
  • ​Lower Temperature Rating: Standard PE softens around 80-100°C (176-212°F), limiting its use in high-temperature environments. Cross-linked PE (XLPE) improves temperature resistance slightly.
  • ​Moisture Absorption: PE absorbs more moisture than PTFE, which can increase loss and alter the dielectric constant.
  • ​Flammability: Standard PE is flammable, requiring additives for flame retardancy (which can negatively impact electrical properties).

PTFE vs. PE: Key Performance Comparison

Choosing the Right Dielectric: A Decision Framework

The optimal choice hinges on your specific application requirements:

1. ​Frequency of Operation:
   • ​**> 1-3 GHz (Microwave, mmWave): PTFE is almost always mandatory** due to its vastly superior low-loss characteristics. PE attenuation becomes prohibitively high.
   • ​**< 1 GHz:** PE can be a viable, cost-effective option if other requirements (temp, phase stability) are met.
2. ​Required Signal Integrity (Loss & Phase):
   • ​Minimal Loss Critical (e.g., Radar, SATCOM, Test Equipment): Choose PTFE.
   • ​Phase Stability Critical (e.g., Phased Arrays, Precision Timing): PTFE (especially expanded or specialized low-phase-stable grades) is strongly preferred.
   • ​Moderate Loss Acceptable: PE might suffice for shorter lengths at lower frequencies.
3. ​Operating Environment:
   • ​High Temperature (> 100°C): PTFE is required.
   • ​Wide Temperature Swings: PTFE’s stable Dk is advantageous.
   • ​High Humidity: PTFE’s low moisture absorption is beneficial.
   • ​Harsh Chemicals: PTFE offers superior resistance.
4. ​Mechanical Requirements:
   • ​High Flexibility/Dynamic Flexing: Standard PE is more flexible than solid PTFE. Consider ​Expanded PTFE (ePTFE) or ​Foam PE for better flexibility with improved electrical performance over solid PE. Solid PTFE is best for semi-static installations.
   • ​Tight Bend Radius: PE or ePTFE may be easier to route.
5. ​Budget Constraints:
   • ​Cost-Sensitive, Lower Freq/Performance Needs: PE offers significant savings.
   • ​Performance Critical: The superior properties of PTFE justify its higher cost.

Conclusion: Matching Material to Mission

The choice between PTFE and PE dielectric fundamentally boils down to a trade-off between performance and cost:

• ​Choose PTFE (Solid or Expanded): When your application demands the ​highest signal integrity (lowest loss, stable phase/impedance), operates at ​high frequencies or temperatures, requires ​excellent environmental resistance, and budget allows for the premium performance. It’s the standard for professional RF, microwave, aerospace, defense, and high-reliability applications.
• ​Choose PE (Solid or Foam): When ​cost is the primary driver, operating frequencies are ​lower (< 1-3 GHz), attenuation over the required length is acceptable, environmental stresses (temp, moisture) are mild, and ​high flexibility is needed. It’s common in consumer electronics, automotive infotainment (lower speed data), and some industrial controls.

For the vast majority of demanding micro coaxial applications, particularly those involving high frequencies, PTFE remains the gold standard dielectric material, delivering the uncompromised performance essential for modern electronic systems. Always consult cable manufacturer datasheets for specific performance specifications of their PTFE and PE cable offerings.
