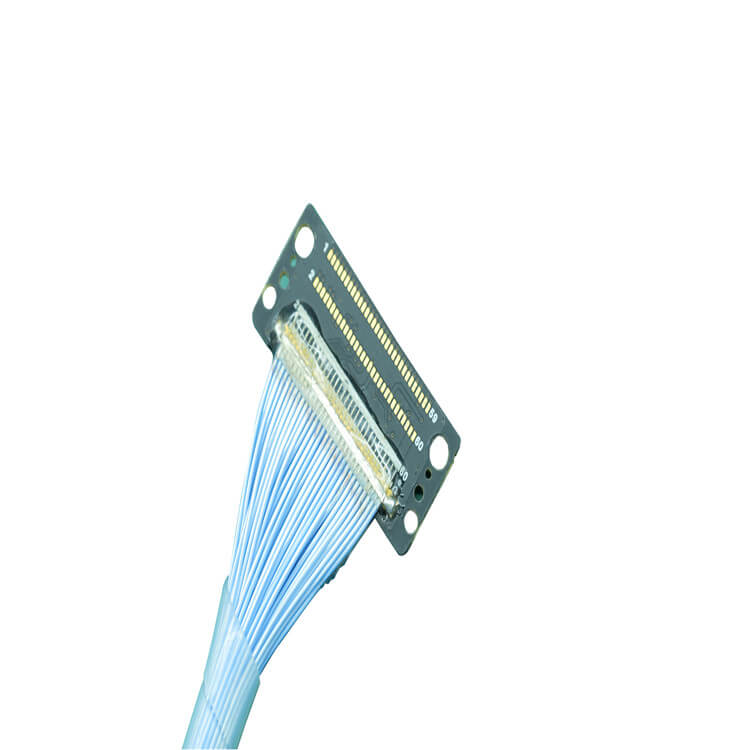

Routing micro-coaxial cables in tight spaces is a common challenge in modern electronics, aerospace, medical devices, and robotics. These tiny cables are essential for high-frequency signal transmission but require careful handling to avoid interference, damage, or performance issues. Whether you’re an engineer, technician, or hobbyist, this guide will walk you through actionable best practices to ensure reliable routing in confined areas.
Why Proper Routing Matters
Micro-coaxial cables are designed for high-speed data transfer (e.g., HDMI, RF signals, or IoT devices). However, tight spaces amplify risks like:
Signal degradation from sharp bends or crosstalk.
Physical damage due to friction or pinching.
Heat buildup in poorly ventilated areas.
Poor routing can lead to costly redesigns or device failures. Follow these strategies to avoid pitfalls.
1. Plan the Cable Path Before Installation
Start with a blueprint.
Map the layout: Use CAD software or a simple sketch to visualize the path. Identify obstacles like screws, heat sinks, or other components.
Prioritize shortest routes: Minimize cable length to reduce signal loss and electromagnetic interference (EMI).
Avoid high-traffic zones: Keep cables away from moving parts (e.g., hinges, motors) to prevent wear.
Pro Tip: Label cables and connectors to simplify troubleshooting later.
2. Choose the Right Cable and Tools
Not all micro-coax cables are equal.
Flexibility: Opt for ultra-flexible cables (e.g., RG-178 or RG-316) for tight bends.
Shielding: Use double-shielded cables to block EMI in crowded environments.
Diameter: Smaller diameters (e.g., 1.13mm) fit better but balance flexibility with durability.
Essential tools:
Micro coaxial strippers for precise termination.
Cable ties or silicone adhesive to secure cables without crushing them.
Heat-shrink tubing to protect connection points.
3. Master the Art of Bending
Sharp bends kill signal integrity.
Follow the bend radius rule: Never bend the cable tighter than 10x its diameter. For a 1mm cable, maintain a 10mm bend radius.
Use gradual curves: Route cables around corners using smooth arcs instead of 90-degree angles.
Avoid kinking: If a cable kinks, replace it—damaged sections act as signal bottlenecks.
4. Secure Cables Without Damaging Them
Loose cables vibrate; overtightened cables crack.
Adhesive clips: Use low-profile silicone clips to hold cables in place without pressure.
Cable ties: If using zip ties, add a protective sleeve to prevent compression.
3D-printed guides: Custom brackets or channels ensure cables stay aligned in complex layouts.
5. Shield Against Interference
Crosstalk and EMI are silent killers in tight spaces.
Separate power and signal lines: Keep high-voltage wires and micro-coax cables at least 2 inches apart.
Ground shielding: Connect the cable’s outer conductor to a common ground point.
Use ferrite beads: Install them near connectors to suppress high-frequency noise.
6. Test and Iterate
Never assume it works on the first try.
Continuity tests: Check for shorts or breaks with a multimeter.
Signal testing: Use a network analyzer or oscilloscope to verify minimal loss (<3dB).
Environmental stress tests: Expose the routed cables to vibrations, temperature changes, or humidity to mimic real-world conditions.
Common Mistakes to Avoid
Ignoring bend radius: The #1 cause of signal loss.
Overcrowding: Cables pressed together generate heat and interference.
Skipping strain relief: Unsecured connectors loosen over time.
