Satellite communication ground stations are critical hubs for global connectivity, enabling everything from weather forecasting to internet access in remote areas. At the heart of these systems lies a component often overlooked but essential for seamless operations: micro-coaxial wiring. This article explores the role of micro-coaxial cables in satellite ground stations, offering actionable insights into their benefits, installation best practices, and maintenance tips to optimize performance.

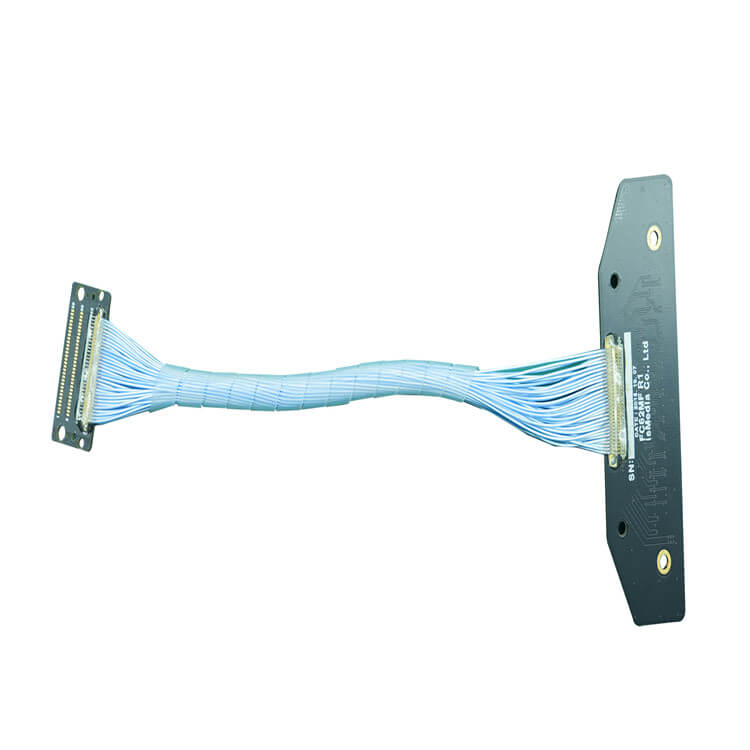

Why Micro-Coaxial Wiring Matters in Satellite Ground Stations
Satellite communication relies on transmitting high-frequency signals (often in the GHz range) over long distances with minimal loss. Traditional wiring solutions struggle to maintain signal integrity at these frequencies, leading to data corruption, latency, or complete signal dropout. Micro-coaxial cables, with their compact design and superior shielding, address these challenges by:
Minimizing Signal Loss: The coaxial structure, featuring a central conductor surrounded by insulation and a metallic shield, reduces electromagnetic interference (EMI) and signal attenuation even at ultra-high frequencies.
Enhancing Bandwidth Capacity: Micro-coaxial cables support wider bandwidths, making them ideal for modern satellite systems that handle multi-frequency operations (e.g., Ka-band, Ku-band).
Space Efficiency: Their small diameter (often < 2mm) allows dense routing in equipment racks, reducing clutter and improving airflow in temperature-sensitive environments.
Durability: Built to withstand harsh conditions—temperature fluctuations, moisture, and vibration—micro-coaxial cables ensure reliability in outdoor ground station installations.
Key Applications of Micro-Coaxial Cables in Ground Stations
Antenna Feed Systems: Connecting low-noise block downconverters (LNBs) and high-power amplifiers (HPAs) to antennas.
RF Transceivers: Linking modems, transmitters, and receivers to ensure uninterrupted signal processing.
Test and Measurement Equipment: Facilitating precise calibration and troubleshooting during system maintenance.
Best Practices for Installing Micro-Coaxial Wiring
Improper installation can negate the advantages of micro-coaxial cables. Follow these steps to maximize performance:
Choose the Right Cable Specifications:
Select cables rated for the operating frequency (e.g., 40 GHz for Ka-band).
Opt for phase-stable cables if synchronization between multiple antennas is critical (e.g., phased-array systems).
Avoid Sharp Bends: Excessive bending can damage the dielectric material, increasing signal loss. Adhere to the manufacturer’s minimum bend radius (typically 10x the cable diameter).
Use Proper Connectors: Corrosion-resistant connectors like SMA or TNC are preferred for outdoor use. Apply torque wrenches to avoid under/over-tightening.
Shield Against EMI:
Route cables away from power lines and high-voltage equipment.
Use ferrite beads or grounded conduit in EMI-prone areas.
Label and Document: Clearly label cable endpoints and maintain a wiring diagram for easier troubleshooting.
Maintenance Tips for Long-Term Reliability
Regular Inspections: Check for physical damage (kinks, frayed shields) and connector corrosion every 6–12 months.
Test Signal Integrity: Use a vector network analyzer (VNA) to measure insertion loss and return loss periodically.
Clean Connectors: Remove dust and debris with compressed air and isopropyl alcohol to prevent signal degradation.
Update Firmware: Ensure connected devices (e.g., modems) are updated to handle evolving protocols like DVB-S2X.
Future Trends: Micro-Coaxial Wiring in Next-Gen Ground Stations
As satellite networks evolve—think LEO (Low Earth Orbit) constellations like Starlink and 5G NTN (Non-Terrestrial Networks)—ground stations will demand even higher data rates and lower latency. Micro-coaxial cables are adapting to these needs with innovations like:
Higher Frequency Ratings: Cables supporting 70+ GHz for terabit-speed transmissions.
Active Cabling: Integrating microprocessors for real-time fault detection and self-calibration.
Sustainable Materials: Eco-friendly shielding and recyclable dielectrics to align with green tech initiatives.
