Medical robots are transforming healthcare, enabling minimally invasive surgeries with superhuman precision, enhancing diagnostics, and improving patient outcomes. At the heart of these sophisticated machines lies an often-overlooked but absolutely critical component: ​coaxial cable. This unassuming cable type serves as the vital “nerve network,” carrying the essential electrical signals that allow robots to see, feel, move, and respond with life-saving accuracy.

​Why Coaxial Cable Reigns in Medical Robotics (The Key Advantages)​​

Medical robots demand exceptional performance and reliability. Coaxial cable meets these demands uniquely well:

1. ​Superior Shielding & EMI Immunity:​​ The fundamental coaxial design – a central conductor surrounded by dielectric insulation, a metallic shield, and an outer jacket – provides ​excellent electromagnetic shielding. This is crucial in crowded hospital environments filled with potential interference sources (MRI machines, other equipment, wireless signals). Coaxial cables prevent external noise from corrupting sensitive control signals, sensor readings (like force feedback or imaging data), and power delivery within the robot.
2. ​Precise Signal Integrity:​​ The controlled impedance (typically 50 or 75 ohms) and consistent geometry of coax ensure signals travel with minimal distortion, maintaining signal shape and timing. This is vital for:
   • High-resolution video transmission from endoscopes and laparoscopes.
   • Accurate transmission of sensor data (position, force, temperature).
   • Reliable delivery of control signals to motors and actuators.
   • Preventing signal reflections that could cause errors.
3. ​Bandwidth & High-Frequency Performance:​​ Modern medical robots rely on complex sensors and high-definition imaging, generating substantial data streams. Coaxial cables offer the necessary ​bandwidth​ to transmit these high-frequency signals efficiently over distances within the robotic arm or system.
4. ​Durability & Flexibility:​​ Medical robots, especially surgical arms used laparoscopically or in confined spaces, require cables that can:
   • ​Flex repeatedly:​​ Articulating joints demand cables that withstand millions of bend cycles without degradation (high flex life). Super-flexible coax designs with specialized stranded conductors and jacketing are essential.
   • ​Withstand Sterilization:​​ Cables directly contacting sterile fields or requiring sterilization (like endoscopes) must endure harsh processes (autoclaving, gamma irradiation, EtO gas) without degrading electrical properties or becoming brittle. Specialized materials (like irradiation-resistant PTFE insulation, bio-compatible jackets) are used.
   • ​Handle Mechanical Stress:​​ Resist abrasion, pinching, and kinking during operation and handling.
5. ​Miniaturization:​​ Space within robotic arms and instruments is severely limited. Coaxial cables can be manufactured in very small diameters while still providing excellent performance, enabling integration into intricate designs. Micro-coaxial assemblies are common.

​Key Requirements & Considerations for Medical Robotics Coax​

Selecting the right coaxial cable involves careful consideration:

1. ​Precise Impedance:​​ Matching the cable’s impedance to the source and destination electronics is critical to avoid signal reflections. 50-ohm coax is standard for many digital signals and RF, while 75-ohm is often used for video.
2. ​Flex Life:​​ This isn’t just flexibility; it’s ​endurance. Cables must be rated for the specific number of flex cycles expected in the application (e.g., hundreds of thousands to millions of cycles). Look for cables specifically designed and tested for high dynamic flex.
3. ​Sterilization Compatibility:​​ ​Must​ be confirmed for the intended sterilization method(s). Material choices (PTFE, FEP, special bio-polymers) and construction are paramount. The cable must not degrade, leach chemicals, or harbor contaminants after repeated sterilization.
4. ​Environmental Resistance:​​ Resistance to fluids (saline, blood, cleaning agents), oils, and temperatures encountered during procedures or sterilization.
5. ​Signal Loss (Attenuation):​​ At higher frequencies or longer runs within the robot, signal loss becomes critical. Lower loss coax designs (e.g., using specialized foamed dielectrics or silver-plated conductors) minimize signal degradation.
6. ​Voltage & Power Handling:​​ Sufficient for the signals being carried, including potential power requirements for sensors or small actuators.
7. ​Shielding Effectiveness:​​ Measures how well the shield blocks EMI/RFI. Higher effectiveness (in dB) is better for critical signal paths. Braid coverage (%) and type (braid, foil, or combination) are key factors.
8. ​Biocompatibility (if patient-contacting):​​ Cables potentially contacting patient tissue or fluids must be biocompatible per standards like ISO 10993, using approved materials.
9. ​Regulatory Compliance:​​ Adherence to relevant electrical safety standards (e.g., IEC 60601 for medical electrical equipment) and quality standards (ISO 13485 for medical device manufacturing) is mandatory for cables used in medical robots.

​Popular Coaxial Cable Types in Medical Robotics​

While custom solutions are common, several standard coax types excel in med-robotics:

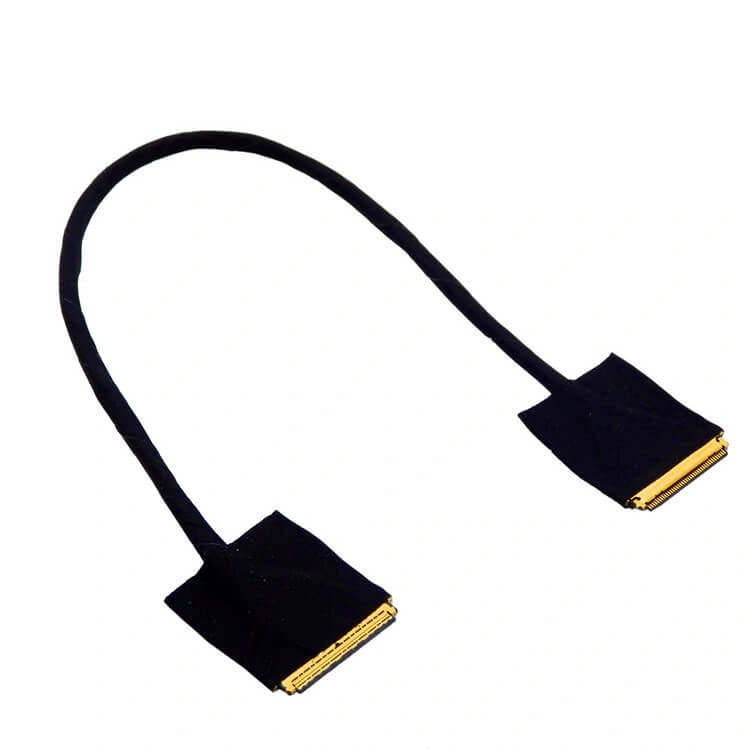

• ​Micro-coaxial & Ultra-fine Coaxial:​​ Miniaturized coax for high-density assemblies within instruments (e.g., catheter-based robots, endoscope heads).
• ​High-flex Coaxial Cables:​​ Engineered with fine stranded conductors, special jacketing (e.g., PUR, TPE), and optimized shielding for exceptional repeated flexing in arms and wrists. Often characterized by low minimum bend radii.
• ​PTFE / FEP Insulated Coax:​​ For extreme temperature tolerance and excellent chemical/sterilization resistance.
• ​Twinaxial Cables:​​ Similar to coax, but with two inner conductors sharing a shield. Useful for high-speed differential signaling (e.g., high-resolution camera links) offering inherent noise rejection.

​Conclusion: A Critical Enabler of Robotic Care​

Coaxial cable is far more than just wire in a medical robot. It’s a sophisticated, engineered component essential for delivering the pristine signals and power required for life-saving precision, reliability, and safety. The demanding environment of robotic surgery and diagnostics necessitates cables that excel in shielding, signal integrity, flexibility, durability, and resistance to harsh sterilization.

Understanding the specific electrical, mechanical, environmental, and regulatory requirements of a medical robotic application is crucial for selecting the optimal coaxial cable solution. This careful selection ensures the “nerve network” of these advanced machines performs flawlessly, enabling surgeons and healthcare professionals to push the boundaries of minimally invasive care. When performance and reliability literally matter at the micron level, coaxial cable is a foundational technology driving success.
