Defeating High Voltages: Safeguarding Micro-Coaxial Power Lines with ...

Micro-coaxial power lines pack impressive power transfer into tiny spaces. But pushing high voltages through these miniature channels creates a critical challenge: ​preventing dangerous electrical discharges and ensuring safe, reliable operation. If you’ve ever wondered how your compact medical implant, aerospace system, or high-density electronics doesn’t short out, high-voltage isolation is the unsung hero. Let’s break down the key techniques protecting your technology.

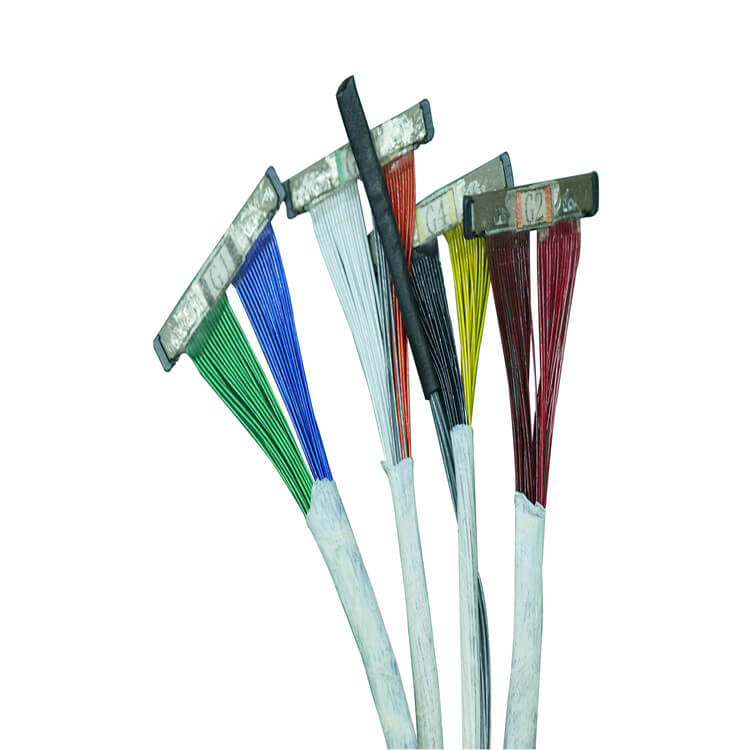

The Problem: Miniature Size, Massive Potential (Difference)

The core issue is simple physics:

1. ​High Voltage Stress: Large potential differences (voltage) want to “jump” across any gap or insulating material. Think lightning finding the shortest path to ground.
2. ​Tiny Insulation Gaps: Micro-coax cables have inherently small distances between their inner conductor (carrying power) and the outer shield/conductor.
3. ​The Arcing/Shorting Risk: Without robust isolation, high voltage can ionize air or puncture insulation, causing arcs (mini lightning!) or shorts. This destroys components, risks fire, and halts operation.

Critical Isolation Techniques: Building the Defense

Engineers deploy several strategies concurrently to create safe micro-coaxial power pathways:

1. ​Robust Dielectric Insulator: The Primary Barrier
   • ​The Shield: High-quality dielectric materials (insulators like PTFE/Teflon®, FEP, PFA, Polyimide, specialized ceramics) fill the space between the inner conductor and the outer shield. This is the primary physical barrier.
   • ​Key Properties Needed:
     • ​High Dielectric Strength: Ability to withstand extremely high electric fields without breaking down (measured in kV/mm or V/mil).
     • ​Low Dielectric Constant (Dk): Minimizes signal distortion and power loss (crucial even for power lines carrying switching currents).
     • ​Low Dissipation Factor (Df): Reduces heat generation within the insulator itself.
     • ​High Temperature Resistance: Maintains properties under operational heat.
     • ​Excellent Flexibility and Durability: Withstands bending, vibrations, and assembly stress common in micro-coax applications.
2. ​Optimized Insulation Thickness & Geometry: Precision Matters
   • ​Thickness is Key: Carefully calculated insulation thickness provides the necessary physical distance (“clearance”) between conductors.
   • ​Balancing Act: Thicker insulation boosts voltage handling but increases cable size and reduces flexibility. Thinner insulation enables micro-sizing but increases breakdown risk. Designers perform critical calculations based on voltage level, material properties, and safety standards (IEC, UL, MIL-STD).
   • ​Geometry Control: Precision manufacturing ensures uniform thickness throughout the cable and at connector interfaces to eliminate weak spots. Contaminants or voids within the insulation are major failure points.
3. ​Crawling Current Countermeasures: Surface Protection
   • ​The Threat: “Creepage Currents.” Electricity can track slowly along the surface of the insulator between conductors, especially in humid or dusty environments. This surface path (creepage distance) must be managed.
   • ​Solutions:
     • ​Creepage Extension: Designing connectors and cable terminations to increase the physical path length along the insulating surface (e.g., ribs, grooves, longer insulating bodies).
     • ​Creepage-Robust Materials: Using insulators resistant to surface tracking (formation of permanent carbonized paths). PTFE and ceramics excel here.
     • ​Conformal Coatings: Applying specialized insulating varnishes or coatings (like Parylene) over assembled connectors to seal out moisture and contaminants, effectively increasing surface insulation resistance. Parylene is exceptional for conformal thin-film coating.
4. ​Gas or Vacuum Fill: Eliminating Air Gaps
   • ​The Problem with Air: Air has a relatively low breakdown voltage. Small pockets or gaps (especially at connector joints) under high pressure become prime sites for arcing.
   • ​Solutions:
     • ​Precise Manufacturing: Minimizing voids during cable extrusion and connector molding/crimping.
     • ​Solid Gels: Filling connectors with insulating gels/silicones that fill all micro-gaps, exclude air/moisture, and suppress partial discharges (tiny, damaging sparks inside voids). Often used in high-reliability applications.
     • ​Pressurized/Special Gas Fills: In ultra-high voltage applications (less common in micro-coax power lines), assemblies might be filled with insulating gases like Sulfur Hexafluoride (SF6), which has a much higher dielectric strength than air. Vacuum sealing is another ultimate solution but expensive for cables.

Why This Matters: Protecting Your Investment & Safety

Effective high-voltage isolation in micro-coax power lines is non-negotiable for:

• ​Safety: Preventing electrical shock, fire hazards, and energy release.
• ​Reliability: Ensuring continuous operation without failures, costly downtime, or data loss (critical in aerospace, medical, industrial control).
• ​Signal/Power Integrity: Minimizing distortion, noise, and losses on the power line itself (impacting adjacent sensitive signal lines in hybrid coax).
• ​Equipment Longevity: Protecting expensive end components powered by the line.
• ​Meeting Regulations: Complying with stringent safety standards (e.g., IEC 60601 for medical devices, DO-160 for aerospace).

Choosing the Right Solution

Selecting the optimal isolation strategy involves trade-offs:

• ​Operating Voltage: Peak and continuous levels dictate insulation thickness and material choices.
• ​Environment: Temperature, humidity, chemicals, pressure, and mechanical stress influence material selection.
• ​Cable Size & Flexibility: Required diameter limit impacts how much insulation can be used.
• ​Cost: Premium materials (PTFE, Parylene) offer superior performance but at a higher cost than PE.
• ​Assembly: Gel-filled connectors require specific assembly processes.
