Demystifying IEC 61196: Your Guide to Micro-Coaxial Cable Performance...

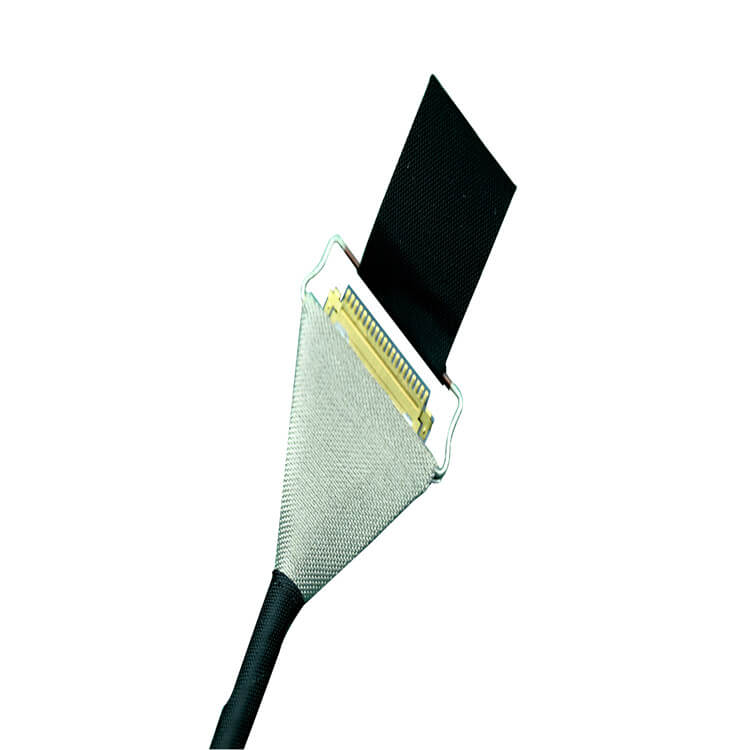

In the intricate world of modern electronics, where signals zip around at lightning speeds, the humble cable plays a starring role. Especially critical are ​micro-coaxial cables – those thin, often overlooked wires connecting everything from your smartphone antenna to complex medical imaging equipment and high-speed data networks. But how do you know if a micro-coax cable is truly up to the task? That’s where the ​IEC 61196 standard comes in.

This article breaks down what IEC 61196 is, why it matters for micro-coaxial cables, and how it helps engineers and buyers ensure they’re getting reliable, high-performance components.

What is IEC 61196?

IEC 61196 is an ​international standard developed by the International Electrotechnical Commission (IEC). Its full title is “IEC 61196: Coaxial communication cables“. This comprehensive series of documents specifies the ​requirements, test methods, and performance characteristics for various types of coaxial cables used in communication systems.

While it covers a range of coaxial cables, it includes crucial sections dedicated specifically to ​testing the performance of miniature and micro-coaxial cables. These sections are vital because smaller cables face unique challenges at high frequencies.

Why is Testing Micro-Coaxial Cable Performance So Important?

Micro-coaxial cables are the workhorses in demanding applications:

• ​High-Frequency Signals: 5G, Wi-Fi 6/6E/7, satellite communications, radar.
• ​Miniature Devices: Smartphones, tablets, wearables, medical implants, drones.
• ​Precision Equipment: Test & measurement instruments, aerospace avionics, industrial sensors.

At these high frequencies and in tight spaces, even tiny imperfections in the cable can significantly degrade signal quality, leading to:

• ​Data Errors: Dropped calls, slow internet, corrupted files.
• ​Reduced Range: Weaker signals that don’t travel as far.
• ​Signal Distortion: Blurry images, inaccurate measurements, malfunctioning equipment.
• ​Interference: Signals leaking out or picking up unwanted noise.

IEC 61196 provides the standardized “language” and methodology to rigorously test these cables and ensure they perform as needed.

Key Performance Tests Covered by IEC 61196 for Micro-Coax

The standard defines numerous tests. Here are some of the most critical ones for micro-coaxial performance:

1. ​Characteristic Impedance:
   • ​What it is: The cable’s inherent resistance to the flow of the signal at a specific frequency. For RF systems, maintaining a consistent impedance (usually 50 or 75 Ohms) is paramount to prevent signal reflections.
   • ​Why it matters: Mismatched impedance causes signal reflections, leading to power loss, distortion, and potential damage to equipment. IEC 61196 specifies how to measure this accurately.
   • ​Test Method: Often involves Time Domain Reflectometry (TDR) or specialized Vector Network Analyzer (VNA) measurements.
2. ​Attenuation (Insertion Loss):
   • ​What it is: The loss of signal power as it travels along the cable length. Measured in decibels per unit length (dB/m or dB/100ft).
   • ​Why it matters: Higher attenuation means weaker signals at the receiving end, limiting range and requiring stronger (and more power-hungry) transmitters or signal boosters. Micro-coax, due to its small size, inherently has higher attenuation than larger coax, making precise measurement crucial.
   • ​Test Method: Typically measured using a VNA, comparing the signal power sent into the cable to the power received at the other end.
3. ​Return Loss / Voltage Standing Wave Ratio (VSWR):
   • ​What it is: Measures how well the cable’s impedance matches the source and load impedances. High return loss (or low VSWR) indicates good matching and minimal signal reflection.
   • ​Why it matters: Directly related to impedance matching. Poor return loss means significant signal energy is reflected back towards the source instead of being delivered to the load, reducing efficiency and potentially causing instability in active components.
   • ​Test Method: Measured directly using a VNA.
4. ​Phase Stability / Delay:
   • ​What it is: Measures how consistently the signal’s phase (timing) travels along the cable, or the time delay introduced by the cable length.
   • ​Why it matters: Critical for applications like phased array antennas, precise timing systems, and digital signal integrity where timing relationships between signals are essential. Bending or flexing the cable shouldn’t unpredictably change the phase.
   • ​Test Method: Requires precise phase measurement capabilities on a VNA, often under varying conditions (temperature, flexing).
5. ​Shielding Effectiveness:
   • ​What it is: Measures how well the cable’s shield prevents external electromagnetic interference (EMI) from disrupting the internal signal and also prevents the internal signal from radiating out and causing interference to other devices.
   • ​Why it matters: Essential for reliable operation in noisy electronic environments and for meeting electromagnetic compatibility (EMC) regulations.
   • ​Test Method: Involves specialized setups where the cable is exposed to controlled RF fields, and the signal leakage or ingress is measured.
6. ​Structural Return Loss (SRL) / Longitudinal Conversion Loss (LCL):
   • ​What it is: SRL measures impedance variations along the length of the cable caused by manufacturing imperfections. LCL measures the cable’s susceptibility to converting external noise (common mode) into internal signal interference (differential mode).
   • ​Why it matters: SRL indicates manufacturing quality consistency. LCL is crucial for rejecting noise, especially in balanced systems or where cables run near noise sources.
   • ​Test Method: Requires specialized VNA measurements focusing on impedance uniformity or specific common-mode to differential-mode conversion tests.

Why Rely on IEC 61196 Compliant Cables?

• ​Assured Performance: You know exactly what performance parameters the cable meets, based on internationally recognized tests.
• ​Reliability: Cables tested to this standard are more likely to perform consistently in your application.
• ​Comparability: Provides a level playing field to compare different manufacturers’ micro-coaxial cables fairly.
• ​Reduced Risk: Minimizes the risk of system failure or underperformance due to inadequate cable performance.
• ​Quality Benchmark: Indicates the manufacturer adheres to rigorous quality control processes.

Finding Reliable Answers & Products

When sourcing micro-coaxial cables, especially for critical applications:

1. ​Look for Compliance: Ask suppliers if their cables are tested and certified to the relevant parts of IEC 61196 (e.g., IEC 61196-4 for RF cables, specific subparts for micro-coax).
2. ​Request Test Reports: Reputable manufacturers should be able to provide detailed test reports showing performance against key IEC 61196 parameters.
3. ​Specify Requirements: Clearly define the performance characteristics you need (e.g., max attenuation at X GHz, minimum shielding effectiveness) based on your application and reference the IEC 61196 test methods.
4. ​Consider Application Context: IEC 61196 provides the how to test. Ensure the cable’s performance levels meet the specific demands of your use case (frequency, data rate, environment, flexing requirements).

Conclusion

IEC 61196 is the cornerstone standard for understanding and verifying the performance of coaxial cables, providing essential rigor for the demanding world of micro-coaxial applications. By defining standardized test methods for critical parameters like impedance, attenuation, shielding, and phase stability, it empowers engineers, designers, and procurement specialists to make informed decisions and select cables that will deliver reliable, high-fidelity signal transmission. When performance is non-negotiable, insisting on IEC 61196 compliance is a fundamental step towards ensuring the success of your electronic systems.
