Introduction:
Superconducting magnets are revolutionary workhorses powering devices from MRI scanners revealing our inner workings to powerful particle colliders unlocking the universe’s secrets. At their core lies a critical, yet often overlooked, component: ​cryogenic micro-coaxial cables. These specialized wires are the vital conduits carrying signals essential for magnet control, safety, and diagnostics within the harsh cryogenic environment. Understanding their role, features, and selection criteria is crucial for anyone designing, maintaining, or sourcing parts for superconducting systems.

Why Special Cables? The Cryogenic Challenge
Ordinary coaxial cables fail miserably in superconducting magnet systems due to three brutal conditions:

1. ​Extreme Cold: Superconductors operate near ​absolute zero (-269°C or 4K for liquid helium, -196°C or 77K for liquid nitrogen). Standard cable materials become brittle, crack, and perform unpredictably.
2. ​Intense Magnetic Fields: Fields reaching ​multi-tesla levels induce currents (eddy currents) in cable conductors and shields, causing unwanted heating and signal distortion if not designed correctly.
3. ​Ultra-Low Noise Environment: Measuring tiny signals (like qubits in quantum computing or NMR spectrometers) requires cables that add ​minimal electrical noise and signal loss (attenuation).
4. ​Mechanical Stress: Materials contract significantly when cooled (thermal contraction). Differing rates between the cable and its surroundings can cause stress and failure.

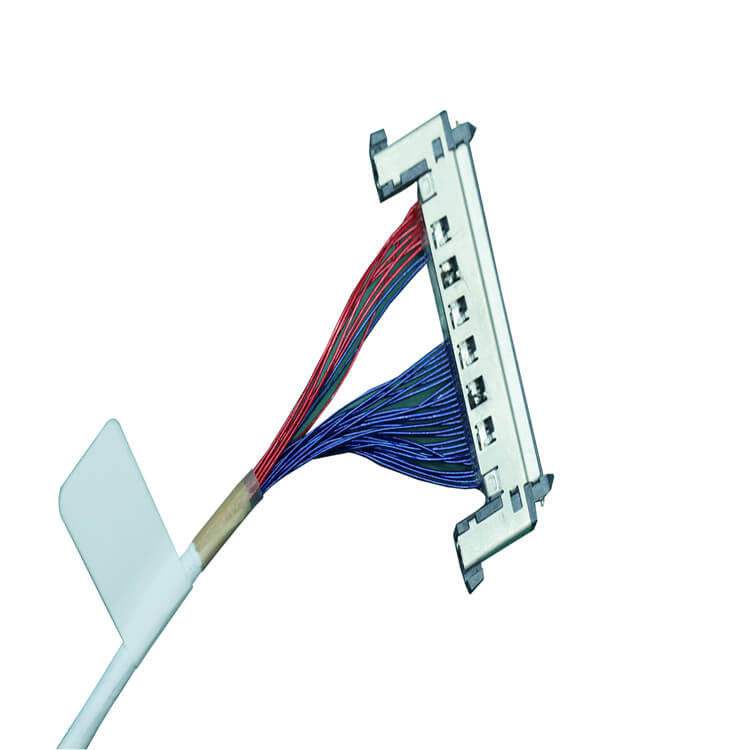

Micro-Coax: Designed for the Deep Freeze
Cryogenic micro-coaxial cables are engineered specifically to overcome these challenges:

• ​Specialized Materials:
  • ​Center Conductors: Oxygen-Free Copper (OFC), Silver-Plated Copper Clad Steel (SPCCS – balances conductivity with strength/contraction), or ultra-low-loss copper alloys.
  • ​Dielectric: Typically solid PTFE (Teflon™) or FEP. Key properties: low dielectric loss at cold temperatures, minimal outgassing (contaminating cryogenic vacuum), and resilience down to 4K/77K.
  • ​Shielding: High-coverage, often double or triple layers, using stainless steel braid (common: SS304 or SS316 – low magnetic permeability, essential!), copper-nickel (CuNi), or specialized alloys like Superconductor- Stabilized (SS) copper combined with stainless steel (SS-DSS). These minimize eddy current heating and provide excellent EMI shielding.
  • ​Outer Jacket: High-purity FEP, PFA, or ETFE. Chemically inert, low outgassing, flexible at cryogenic temperatures, and resistant to radiation.
• ​Optimized Construction:
  • Precise dimensions ensure controlled impedance (usually 50 ohms) at cryogenic temps.
  • Shield designs minimize triboelectric noise (noise from mechanical friction/vibration).
  • Low-loss designs prioritize signal integrity (critical for measurements).
  • Specialized termination techniques ensure reliable connections that survive thermal cycling.

Key Performance Parameters (Why They Matter)

1. ​Attenuation (Loss): Measured in ​dB/meter. Lower is critical, especially for high-frequency signals (RF, control pulses) traveling long distances within the cryostat. Cryogenic attenuation is usually higher than at room temperature.
2. ​Dielectric Absorption (DA): Reflects how much signal energy is absorbed by the dielectric material. High DA causes signal dispersion and distortion, detrimental to measurement accuracy. ​**”Cold dielectric” cables** are optimized for low DA at cryogenic temperatures.
3. ​Thermal Contraction: Material ratios are chosen so that the cable contracts consistently without kinking or putting excessive stress on terminations or surrounding structures. Mismatched contraction is a common failure mode.
4. ​Magnetic Properties: Shielding materials must have ​low magnetic permeability to prevent heating from eddy currents in high fields (MuMetal or specialized stainless steels are common). Conductor materials should also be low-permeability.
5. ​Thermal Conductivity: While the cable itself is an electrical pathway, minimizing its thermal conduction (heat leak) into the cryogenic environment is vital to reduce liquid cryogen boil-off. Cables are designed as thermal “breaks.”
6. ​Noise: Excellent shielding (high coverage %) and triboelectric noise suppression are non-negotiable for sensitive instrumentation.
7. ​Flexibility: Cables must often be routed through tight bends in cryostats and survive repeated thermal cycling without breaking conductors.

Applications: Where Cryogenic Micro-Coax is Indispensable
These cables are the ​RF and signal highway inside critical systems:

• ​Medical Imaging (MRI): Connecting Radio Frequency (RF) coils to receivers/transmitters, carrying control signals to magnet shim coils.
• ​Nuclear Magnetic Resonance (NMR) Spectrometers: Similar role to MRI, but often demanding even lower noise and attenuation for ultra-high-field research magnets.
• ​Fusion Research (Tokamaks/Stellarators): Instrumentation cables for diagnostics like magnetic probes, temperature sensors, strain gauges, internal in-vessel cameras.
• ​Particle Accelerators (Colliders, Synchrotrons): Signal transmission for beam position monitors, cavity tuning, quench detectors, magnet power supply feedback.
• ​Quantum Computing: Interfacing control and readout electronics with superconducting qubits at milli-Kelvin temperatures, requiring the ultimate in signal integrity and ultra-low noise.
• ​Superconducting Fault Current Limiters (SFCL), Motors, Generators: Diagnostic and control wiring.

Selecting the Right Cryogenic Micro-Coax Cable: Key Considerations

Finding Reliable Information and Suppliers

• ​Manufacturer Websites: Search for companies specializing in cryogenic cables (e.g., Micro-Coax Inc., Coax Co., Habia Cable, Lakeshore Cryotronics often resells specialty cable). Look for detailed specs, application notes, and cryogenic performance data sheets measured at low temperatures.
• ​Technical Papers & Conference Proceedings: IEEE publications, journals like Cryogenics, and proceedings from conferences like CEC/ICMC (Cryogenic Engineering Conference/International Cryogenic Materials Conference) often contain research and technical data on cryogenic cable performance.
• ​Industry Standards: While specific cable standards might be limited, refer to system-level standards (like for MRI safety) which imply cable requirements. Manufacturer specs are paramount.
• ​Consult Experts: When in doubt, consult with the superconducting magnet system manufacturer or a reputable cryogenic cable supplier directly. Provide full operating parameters (temp, field, signal types, frequencies, length, vacuum level).
