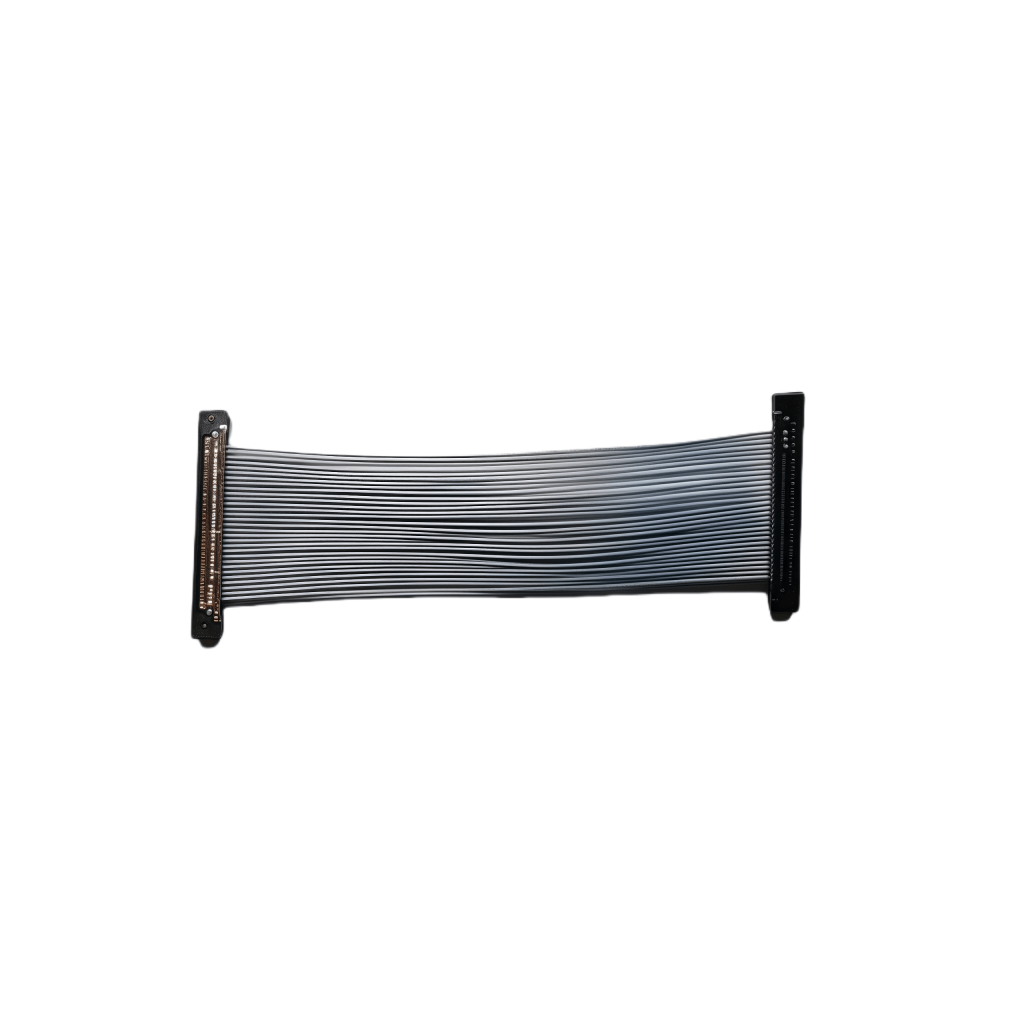

Micro coaxial cables are widely used in various electronic devices due to their excellent signal transmission capabilities and compact size. However, soldering micro coaxial cable connections can be a tricky task, especially for beginners. This article will guide you through the process step by step, providing you with the knowledge and skills to make reliable solder joints.
1. Gather the Necessary Tools and Materials
Before you start soldering, it’s essential to have the right tools and materials on hand. Here’s a list of what you’ll need:
Soldering Iron: Choose a soldering iron with a fine tip, preferably with a wattage between 20-30W. This will allow for precise soldering on the small components of micro coaxial cables.
Solder: Use a high-quality, rosin-core solder with a diameter suitable for micro soldering, typically around 0.5mm. Rosin-core solder helps to clean the surfaces and promote better soldering.
Micro Coaxial Cables: Ensure that you have the correct type and length of micro coaxial cables for your project.
Wire Strippers: Get a pair of wire strippers specifically designed for small-gauge wires to carefully remove the outer insulation of the micro coaxial cable without damaging the inner components.
Flush Cutters: These will be used to trim any excess wire or solder after the soldering process.
Helping Hands or Third Hand Tool: This tool holds the cable and other components in place, freeing up your hands for soldering.
Isopropyl Alcohol and Flux Pen: Isopropyl alcohol is used to clean the surfaces before soldering, while the flux pen applies a thin layer of flux to improve the soldering process.
2. Prepare the Micro Coaxial Cable
Once you have all the necessary tools and materials, it’s time to prepare the micro coaxial cable for soldering:
Strip the Outer Insulation: Use the wire strippers to carefully remove a short section of the outer insulation from the end of the micro coaxial cable. Be gentle to avoid damaging the inner shield or the center conductor.
Expose the Shield and Center Conductor: After removing the outer insulation, you’ll see the braided shield and the center conductor. Spread the shield apart carefully to expose the center conductor. You can use a small pair of tweezers or your fingers to do this.
Tin the Shield and Center Conductor: Apply a small amount of flux to the exposed shield and center conductor using the flux pen. Then, heat the tip of the soldering iron and touch it to the shield and center conductor while applying a small amount of solder. The solder should flow evenly and coat the surfaces, creating a thin layer of tin. This step makes it easier to make a good solder joint later.
3. Solder the Micro Coaxial Cable Connection
Now that the micro coaxial cable is prepared, you can start soldering the connection:
Position the Cable: Use the helping hands or third hand tool to hold the micro coaxial cable and the component or connector you’re soldering it to in the correct position. Make sure the center conductor and the shield are aligned properly with the corresponding pads or terminals.
Solder the Center Conductor: Heat the soldering iron tip and touch it to the pad or terminal where the center conductor will be soldered. Then, touch the solder to the joint between the soldering iron and the pad/terminal. The heat from the soldering iron will melt the solder, which will flow around the center conductor and the pad/terminal, creating a strong connection. Remove the soldering iron and the solder once the joint is formed, and allow it to cool.
Solder the Shield: Repeat the process for the shield. Heat the soldering iron tip and touch it to the appropriate pad or terminal for the shield. Apply solder to the joint and ensure that the shield is securely attached. Make sure the solder covers the entire area where the shield makes contact with the pad/terminal.
4. Tips and Tricks for Successful Soldering
Soldering micro coaxial cable connections can be challenging, but these tips can help you achieve better results:
Keep the Soldering Iron Tip Clean: Regularly clean the soldering iron tip using a damp sponge or a brass wire tip cleaner. A clean tip ensures better heat transfer and makes soldering easier.
Don’t Overheat the Components: Micro coaxial cables and their associated components are sensitive to heat. Avoid leaving the soldering iron on the joint for too long, as this can damage the insulation, the center conductor, or the other components.
Use the Right Amount of Solder: Apply just enough solder to create a strong joint. Too much solder can cause short circuits or make the joint bulky, while too little solder may result in a weak connection.
Practice on Scrap Cables: If you’re new to soldering micro coaxial cables, it’s a good idea to practice on some scrap cables first. This will help you get a feel for the process and improve your soldering skills.
5. Inspect and Test the Soldered Connection
After soldering, it’s important to inspect and test the connection to ensure it’s reliable:
Visual Inspection: Examine the soldered joint carefully for any signs of cold joints, bridges, or other defects. A good solder joint should have a smooth, shiny surface.
Electrical Testing: Use a multimeter to test the continuity of the connection. Check that the center conductor and the shield are properly connected to their respective components and that there are no short circuits between them.
Soldering micro coaxial cable connections may seem daunting at first, but with the right tools, proper preparation, and a bit of practice, you can master this skill. By following the steps and tips outlined in this article, you’ll be able to make reliable solder joints that ensure the optimal performance of your electronic devices.
