The Different Types of Micro Coaxial Cable Connectors

When working with electronic devices, antennas, or high-frequency signal systems, choosing the right micro coaxial cable connector is critical. These tiny connectors ensure reliable signal transmission while minimizing interference. But with so many options available, how do you know which one to pick? In this guide, we’ll break down the most common types of micro coaxial cable connectors, their uses, and how to identify the best fit for your project.

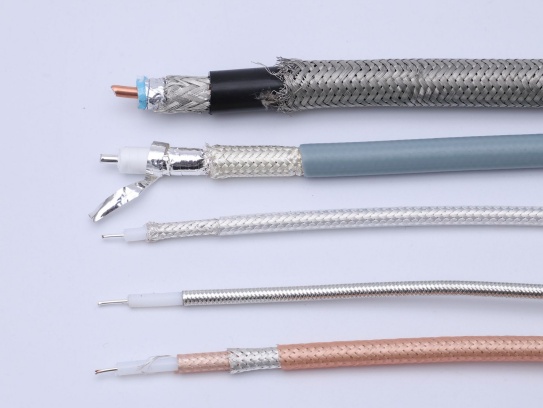

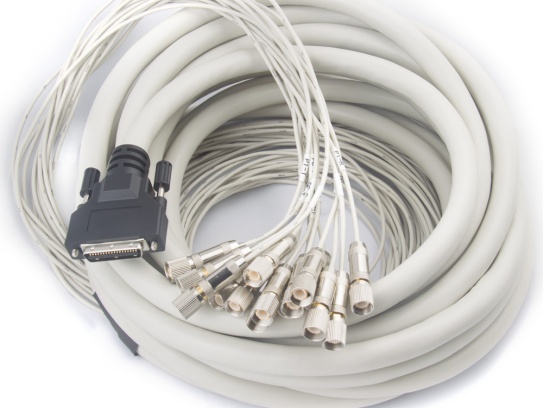

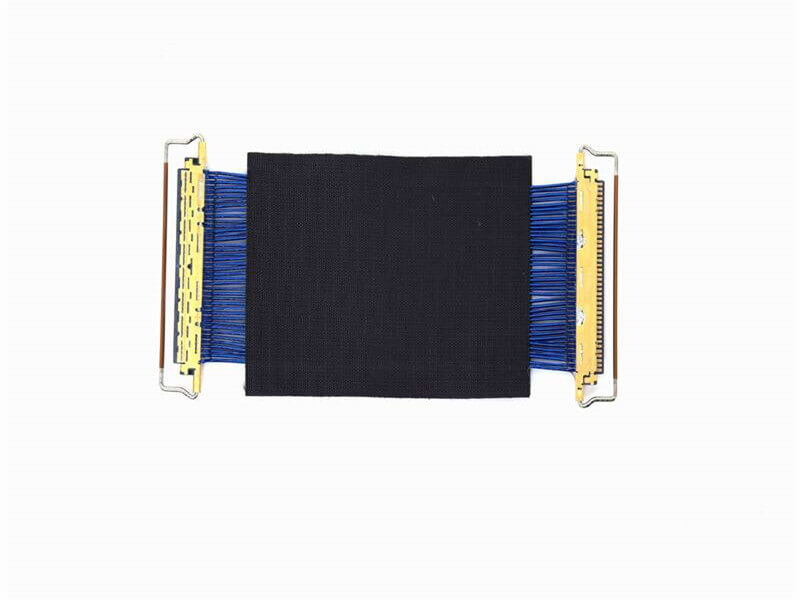

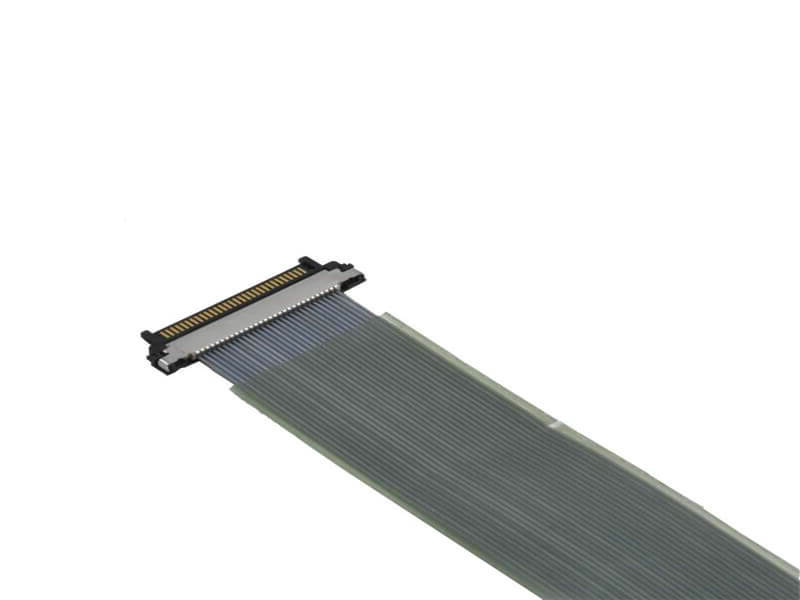

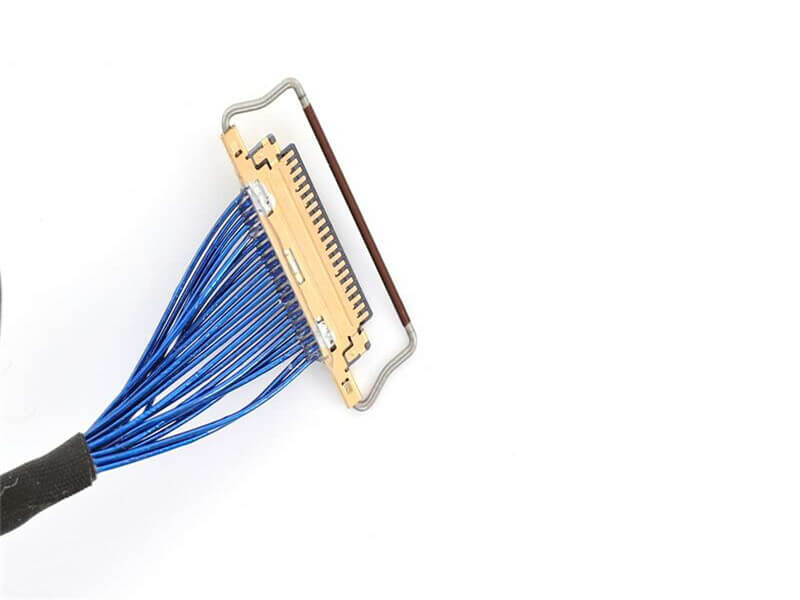

What Are Micro Coaxial Cable Connectors?

Micro coaxial connectors are compact, high-performance interfaces designed to transmit radio frequency (RF) signals in tight spaces. They’re widely used in applications like:

Wireless communication devices (e.g., Wi-Fi routers, cell phones)
Medical equipment
Automotive electronics
Drones and robotics
IoT devices

Their small size, durability, and ability to handle high frequencies (up to 6 GHz or more) make them ideal for modern electronics.

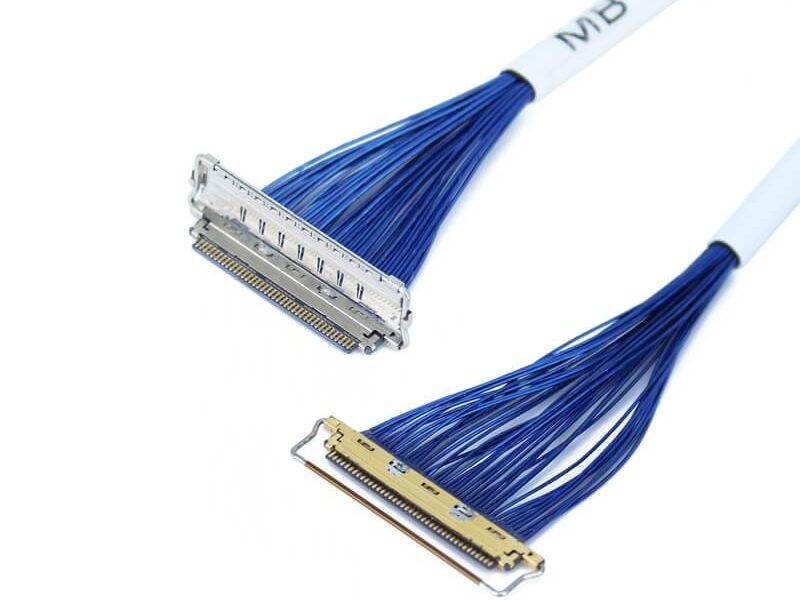

6 Common Types of Micro Coaxial Connectors

1. MCX (Micro Coaxial) Connectors

Size: Slightly smaller than SMA connectors.
Frequency Range: Up to 6 GHz.
Key Features: Snap-on coupling mechanism for quick installation.
Uses: GPS systems, RF modules, and small antennas.

Pros: Compact, cost-effective, easy to install.
Cons: Not ideal for high-vibration environments.

2. MMCX (Micro Miniature Coaxial) Connectors

Size: Even smaller than MCX, with a 1.3 mm outer diameter.
Frequency Range: Up to 6 GHz.
Key Features: 360-degree rotational design for flexible positioning.
Uses: Miniature devices like Bluetooth modules, small sensors, and wearables.

Pros: Ultra-compact, durable, supports repeated mating cycles.
Cons: Limited power handling.

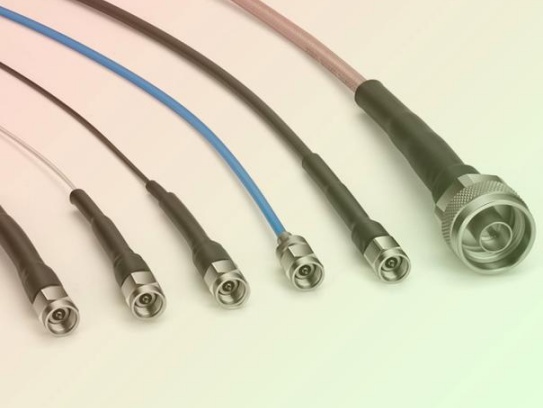

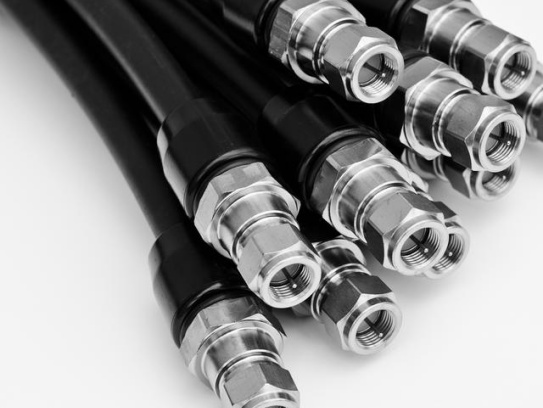

3. SMA (SubMiniature Version A) Connectors

Size: Larger than MCX/MMCX but still compact.
Frequency Range: Up to 18 GHz (for precision variants).
Key Features: Threaded coupling for secure connections.
Uses: High-frequency applications like radar systems, RF test equipment, and satellite communications.

Pros: High durability, excellent signal integrity.
Cons: Requires careful alignment during installation.

4. SMB (SubMiniature Version B) Connectors

Size: Similar to SMA but with a snap-on design.
Frequency Range: Up to 4 GHz.
Key Features: Quick-connect mechanism for easy assembly.
Uses: Telecom infrastructure, automotive electronics, and industrial equipment.

Pros: Affordable, vibration-resistant.
Cons: Lower frequency handling than SMA.

5. U.FL/IPX Connectors

Size: Extremely small (1.5 mm outer diameter).
Frequency Range: Up to 6 GHz.
Key Features: Surface-mountable, ultra-lightweight.
Uses: Smartphones, laptops, drones, and embedded systems.

Pros: Ideal for space-constrained designs.
Cons: Not designed for frequent disconnections.

6. SMP (Surface Mount Push-on) Connectors

Size: Compact, with a push-fit design.
Frequency Range: Up to 40 GHz (for high-end variants).
Key Features: Combines surface-mount capability with high-frequency performance.
Uses: 5G networks, aerospace systems, and millimeter-wave applications.

Pros: Broad frequency range, reliable in harsh conditions.
Cons: Higher cost.

How to Choose the Right Connector

Consider these factors when selecting a micro coaxial connector:

Frequency Requirements: Match the connector’s range to your application.
Size Constraints: Opt for ultra-small connectors (e.g., U.FL) for wearable tech.
Durability: Threaded connectors (SMA) are better for high-vibration environments.
Cost: SMB and MCX are budget-friendly for low-frequency uses.
