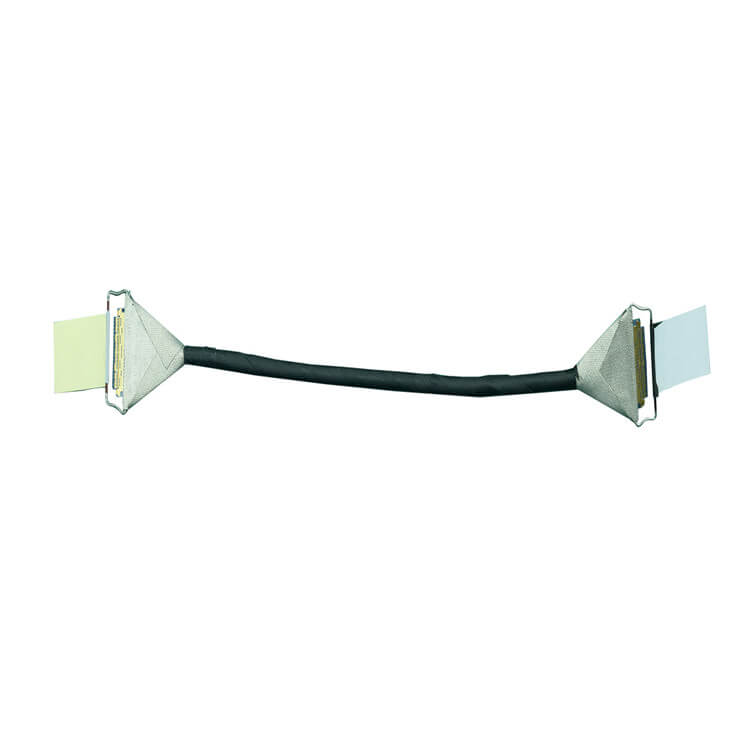

In the relentless drive for smaller, faster, and more powerful electronics, a silent hero quietly enables success: the micro coaxial cable. These miniature marvels are far more than just tiny wires; they are the critical arteries carrying the lifeblood of high-frequency signals that power the features we demand. As devices shrink while packing unprecedented functionality, micro coax cables provide the essential connectivity solution.
Why Micro Coax for Modern Electronics? The Core Advantages:
Shielding Supremacy: Their defining feature is the precise coaxial structure – a central conductor surrounded by insulation, a braided or foil shield, and an outer jacket. This design acts as a Faraday cage, effectively containing electromagnetic interference (EMI) within the cable and robustly rejecting external EMI and radio frequency interference (RFI). This is non-negotiable in densely packed gadgets where multiple signals operate simultaneously.
Unmatched Signal Integrity at High Frequencies: As data rates surge (think multi-gigabit USB, Thunderbolt, PCIe, HDMI, and internal communication protocols like MIPI D-PHY/C-PHY), signal integrity is paramount. Micro coax provides a tightly controlled characteristic impedance (typically 50Ω or 75Ω). This minimizes signal reflection, attenuation, and distortion, ensuring data arrives accurately and reliably, even at bandwidths exceeding 10GHz.
Miniaturization Enablers: With diameters often ranging from sub-millimeter down to fractions of a millimeter, micro coax cables are uniquely suited for fitting into the incredibly tight confines of smartphones, tablets, ultra-thin laptops, wearables like smartwatches and AR/VR headsets, digital cameras, and complex medical sensors and imaging devices.
Flexibility and Reliability: Despite their tiny size, advanced designs offer excellent bend radius and flex life. They withstand the mechanical stresses of repeated flexing in hinge mechanisms (like flip phones/foldables), constant movement in wearable devices, and assembly processes, ensuring long-term reliability.
Space & Weight Savings: Their miniature profile significantly reduces the space required for internal wiring compared to larger cable types or shielded twisted pairs, contributing directly to the sleek, lightweight designs consumers demand. This also means less material consumption.
Where Do You Find Micro Coax? Ubiquitous Applications:
Micro coaxial cables are the invisible backbone in countless devices:
Mobile Computing & Communication: Connecting high-resolution displays to main boards, linking multiple cameras (standard, telephoto, wide-angle, depth sensors) to the image signal processor (ISP), antenna feeds for cellular (5G), Wi-Fi, Bluetooth, GNSS, internal high-speed data buses.
Wearables & AR/VR: Transmitting data for sensors, high-resolution micro-displays, and cameras within the tightest possible enclosures.
Digital Cameras & Camcorders: Carrying high-bitrate video signals from the image sensor to the camera processor, even through articulated lens assemblies.
Medical Devices: Used in miniature endoscopes, diagnostic probes, patient monitors, and imaging equipment where signal fidelity is critical for diagnosis and patient safety, often within flexible or implantable devices.
Automotive Electronics: Found in Advanced Driver-Assistance Systems (ADAS) sensors like cameras and radars, infotainment displays, and critical internal communications within head units and instrument clusters.
Aerospace & Defense: Used in guidance systems, communication modules, and sensors within UAVs/drones and satellites, where weight reduction and reliability under extreme conditions are critical.
Impedance Control: Consistency along the entire cable length is vital.
Attenuation (Insertion Loss): Minimizing signal degradation at target frequencies.
Phase Matching: For differential pairs (like D-PHY, C-PHY), the electrical length must be tightly matched.
EMI Effectiveness: Shielding coverage percentage and material (e.g., silver-plated copper) determine EMI suppression.
Material Selection: Dielectric materials with low loss tangents (like PTFE or FEP foam) are chosen for high-frequency applications. Jacket materials provide abrasion resistance and sometimes chemical resistance.
Termination Expertise: Precision connectors require specialized, high-reliability termination processes. Shield termination techniques are crucial for performance.
The Future: Driving Miniaturization & Connectivity Forward
The demand for micro coax will only intensify as trends like:
Increased Integration: More cameras, sensors, and modules per device.
Denser Packaging: Further reductions in device thickness and internal space.
Medical Advances: Development of smaller diagnostic tools and implants.
Innovations will focus on even finer diameters, improved shielding in tighter spaces, lower loss dielectrics for even higher frequencies, enhanced flexibility, and automation-friendly termination solutions.
