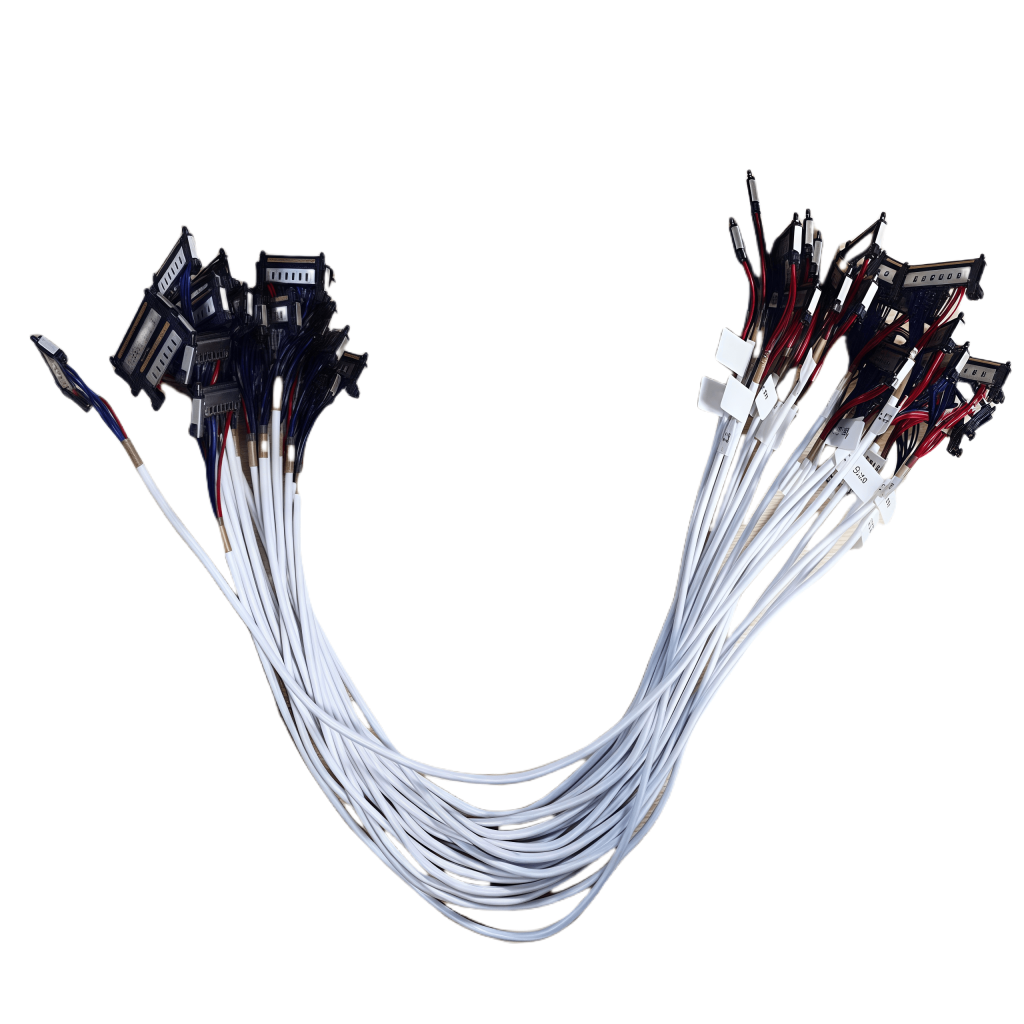

Micro-coaxial cables are the unsung heroes of modern electronics, carrying high-frequency signals critical for everything from aerospace systems and medical devices to robotics and industrial automation. But what happens when these tiny cables face the relentless shaking and pounding of extreme vibration environments? Can they hold up? This article dives into the challenges and solutions for ensuring micro-coaxial cable reliability when the going gets tough.
Why Vibration is a Major Threat to Micro-Coaxial Cables
Unlike standard cables, micro-coax (often featuring tiny diameters like 0.81mm or 1.13mm) is particularly vulnerable to vibration due to its size and construction:
Mechanical Stress on Conductors: Constant shaking can cause the delicate inner conductor to flex, fatigue, and eventually break. The dielectric insulator surrounding it can also be compressed or deformed, altering the cable’s electrical properties (impedance, signal loss).
Connector Strain: The point where the cable meets the connector is a critical weak spot. Vibration can cause repeated bending and flexing right at the termination, leading to solder joint failure, center pin pull-out, or damage to the crimp.
Shielding Degradation: The braided or foil shield is essential for signal integrity and EMI protection. Intense vibration can cause shield strands to fray, break, or shift, compromising performance and increasing susceptibility to noise.
Jacket Wear and Abrasion: Vibration often causes cables to rub against each other or surrounding structures. Over time, this abrasion can wear through the outer jacket, exposing the inner layers to damage or short circuits.
Material Fatigue: All materials have limits. Repeated stress cycles from vibration can cause the cable’s components (conductor, dielectric, jacket) to fatigue and fail prematurely.
Ensuring Reliability: Key Design and Selection Factors
Choosing or specifying the right micro-coaxial cable for high-vibration applications requires careful consideration:
Robust Conductor Design:
Stranded vs. Solid Core: Stranded center conductors offer significantly better flexibility and fatigue resistance than solid core conductors under vibration. Look for fine-stranded designs.
Conductor Material: High-quality copper alloys (sometimes silver-plated) provide good conductivity and strength.
Stable Dielectric Materials: The dielectric needs to maintain consistent electrical properties under stress. Materials like PTFE (Teflon) or irradiated foamed polyethylene are known for their stability, low loss, and resistance to compression set.
High-Performance Shielding:
Braided Shields: Opt for high-density braids (e.g., 95% coverage or higher). Multiple layers (braid-over-braid) offer superior durability and EMI performance under flex and vibration.
Tape Shields: While effective for EMI, foil tapes can be more susceptible to cracking and breaking under repeated flexing/vibration compared to braids. A combination (braid + foil) is often used for optimal performance.
Durable and Flexible Jacket:
Material: Choose jackets made from abrasion-resistant, flexible materials like irradiated PVC, polyurethane (PUR), or specific elastomers. These resist cracking, cuts, and wear caused by vibration-induced rubbing.
Jacket Bonding: Some cables feature a “bonded” construction where the jacket is adhered to the underlying shield. This prevents the jacket from sliding independently, reducing stress at termination points and improving overall cable integrity under vibration.
Critical Strain Relief at Connectors: This is paramount. Properly designed connectors incorporate robust strain relief mechanisms:
Overmolding: A molded boot that transitions smoothly from the rigid connector to the flexible cable, distributing stress over a longer length.
Clamping: Secure mechanical clamps that grip the cable jacket firmly without crushing the inner components.
Cable Glands: External hardware providing additional mechanical support and sealing.
Testing is Non-Negotiable: Proving Reliability
Manufacturers rigorously test micro-coaxial cables destined for harsh environments. Key vibration tests include:
Sine Vibration: Tests response at specific frequencies.
Random Vibration: Simulates real-world, multi-frequency vibration profiles (often referencing standards like MIL-STD-202, MIL-STD-883, or IEC 60068-2-6).
Shock Testing: Evaluates performance under sudden impacts.
Flex Life Testing: Measures how many bending cycles a cable can endure before failure.
Look for cables tested and certified to relevant industry standards (e.g., UL, MIL-DTL-17, ESA/ESCC) for vibration resistance.
Best Practices for Installation and Use
Even the best cable can fail if installed poorly:
Secure Routing: Use clamps, cable ties (avoid over-tightening!), and guides to secure the cable along its path. Minimize unsupported lengths.
Avoid Sharp Bends: Maintain the cable manufacturer’s specified minimum bend radius, especially near connectors.
Minimize Tension: Ensure the cable isn’t pulled taut; allow some slack to absorb movement.
Protect from Abrasion: Use sleeves, conduits, or grommets where cables pass through panels or rub against surfaces.
Inspect Regularly: Periodically check cables for signs of wear, abrasion, kinking, or damage near connectors.
Conclusion: Reliability is Achievable
Micro-coaxial cables can deliver exceptional reliability in extreme vibration environments, but it doesn’t happen by accident. Success hinges on:
Selecting the Right Cable: Prioritize designs with stranded conductors, robust shielding, durable jackets, and proven vibration performance.
Demanding Quality Connectors & Strain Relief: Ensure connectors are specifically designed and tested for high-vibration use with effective strain relief.
Rigorous Testing: Verify performance through industry-standard vibration and mechanical tests.
Proper Installation: Careful routing, securing, and handling are critical for long-term reliability.
By understanding the challenges of vibration and focusing on these key aspects of design, selection, and deployment, engineers and designers can confidently integrate micro-coaxial cables into systems that must perform flawlessly, even when the world around them is shaking. When reliability under duress is non-negotiable, choosing the right micro-coax solution is paramount.
