How to Properly Document Micro Coaxial Cable Installations

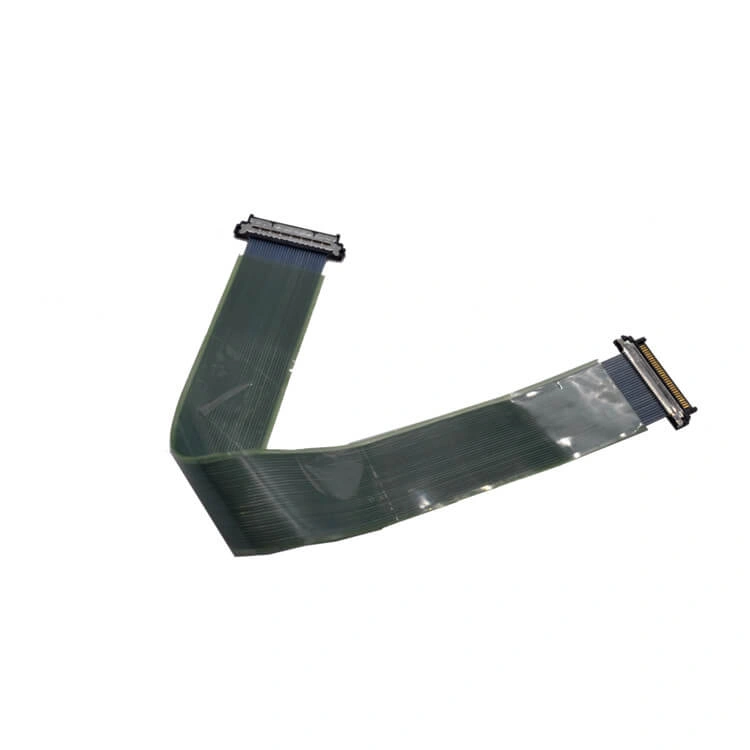

Micro coaxial cables are the unsung heroes of modern electronics, carrying high-frequency signals in everything from aerospace systems and medical devices to advanced telecommunications and compact consumer gadgets. Their small size (often less than 1mm!) makes installation intricate, and proper documentation is absolutely critical for future troubleshooting, repairs, modifications, and ensuring long-term system reliability. Skimping here can lead to costly downtime and frustration. Here’s a practical guide to doing it right:

Why Detailed Documentation Matters:

Troubleshooting Nightmares Averted: Quickly pinpoint signal loss, shorts, or interference sources.
Efficient Repairs & Modifications: Future technicians know exactly where cables run and how they connect.
Quality Assurance & Compliance: Provides evidence of correct installation per design specs and industry standards (like IPC/WHMA-A-620).
Asset Management: Tracks cable types, lengths, and usage for inventory and replacement planning.
Knowledge Transfer: Essential if the original installer isn’t available.

Essentials of Effective Micro Coax Documentation:

The Master Schematic/Diagram is King:
- Start Here: Base all documentation on the approved electrical schematic and mechanical layout.
- Clarity is Crucial: Ensure connector pinouts, cable identifiers, grounding points, and signal types (e.g., RF, high-speed data) are explicitly shown.
- Digital is Best: Use CAD software or dedicated wiring diagram tools. Keep the master file updated!
Unique Identification is Non-Negotiable:
- Label Every Cable: Apply durable, legible labels at both ends of each micro coax cable. Use heat-shrink tubing labels or ultra-fine cable markers designed for small diameters.
- Consistent Scheme: Use a clear, logical naming convention (e.g., J1_A_RX_IN for Jack 1, Cable A, Receive Input).
- Map Connections: Explicitly document exactly which connector pin/socket on one end connects to which pin/socket on the other end. Don’t assume it’s obvious!
Capture the Physical Path (Routing & Strain Relief):
- Detail the Route: Precisely note how the cable runs through the assembly. Which conduit, clip, channel, or guide does it use? What panels or structures does it pass through/under/over?
- Photograph Strategically: Take clear, well-lit photos:
  - Before bundling (showing individual paths).
  - Critical routing points (around bends, through bulkheads).
  - Strain relief points (clamps, boots, service loops).
  - Final connector terminations on both ends.
- Annotate Photos: Use arrows, circles, and text overlays (or a separate key) to explain what each photo shows relative to labels and the schematic.
- Note Critical Distances: Record minimum bend radii maintained, proximity to potential interference sources (power cables, motors), and service loop locations/lengths.
Document Installation Techniques & Materials:
- Termination Method: Soldered? Crimped? Press-fit? Specify the tool settings or crimp die used (if applicable).
- Shielding Treatment: How was the cable shield terminated? (e.g., 360-degree connector grounding, drain wire soldered).
- Protection Used: Note any sleeving (e.g., PTFE, woven), conduit, spiral wrap, or protective boots installed.
- Strain Relief: Detail the method (cable tie, clamp, adhesive anchor) and location.
- Securing Methods: Types and locations of clips, cable ties (including tension), adhesives, or lacing.
Record Test Results – Proof of Performance:
- Mandatory Testing: Document results for each installed cable:
  - Continuity: Verified opens/shorts between correct pins only.
  - Shielding Continuity: Ground connection integrity.
  - Signal Integrity (If Possible):
    - Insertion Loss / Attenuation (using VNA at relevant frequencies).
    - Return Loss / VSWR.
    - Time Domain Reflectometry (TDR) traces showing impedance consistency and any anomalies (can reveal hidden damage or poor terminations).
  - Visual Inspection (per IPC-A-620 standards): Note pass/fail based on criteria for solder joints, crimps, insulation gaps, etc.
- Capture Actual Data: Attach test reports, screenshots from VNAs/TDRs/oscilloscopes. Don’t just write “Passed”.
- Equipment Used: Note the make/model of test equipment and calibration dates.
Consolidate into a Traceable Record:
- Create a Master Installation Log/Report: Compile all the above information into a single, well-organized document or digital folder. Include:
  - Project/Assembly Name & Identifier
  - Date of Installation
  - Installer’s Name(s)
  - References to Schematics, Diagrams (version numbers!)
  - Cable Schedule/List (Cable ID, Type/Length, From/To Connection Points)
  - Photos (clearly referenced)
  - Test Results
  - Notes Section (observations, deviations approved by engineer)
- Digital Format is Ideal: Facilitates searching, updating, and distributing backups. Cloud storage with version control is excellent. Physical copies should also be stored securely.
- Review & Approve: Have a second qualified person (ideally an engineer or QA) review the documentation for accuracy and completeness before final sign-off.

Pro Tips for Success:

Document AS YOU GO: Don’t wait until the end! Label cables immediately after termination. Take photos before closing enclosures. Record test results per cable as they are completed.
Invest in Good Tools: Ultra-fine labels, macro camera lenses, and organized digital documentation software make the job easier and the result better.
Assume Someone Else Must Understand It: Write clearly and avoid jargon unless defined. Assume the reader has basic technical knowledge but wasn’t present during the install.
Version Control: If schematics or layouts change, update the documentation immediately and archive old versions.
Store Securely & Accessibly: Ensure the final documentation is stored where it will be found years later by maintenance teams (not just on the installer’s personal drive!).

Conclusion:

Properly documenting micro coaxial cable installations is an investment in the future reliability and serviceability of your equipment. It takes diligence and time during the installation phase, but this effort pays massive dividends when problems arise, changes are needed, or when proving compliance. By meticulously recording cable IDs, paths, connection details, termination methods, and test results – and compiling this information into a clear, accessible report – you create an invaluable resource that ensures your complex cabling work continues to perform flawlessly for years to come. Don’t let the small size fool you; the importance of documentation for micro coax is huge.
