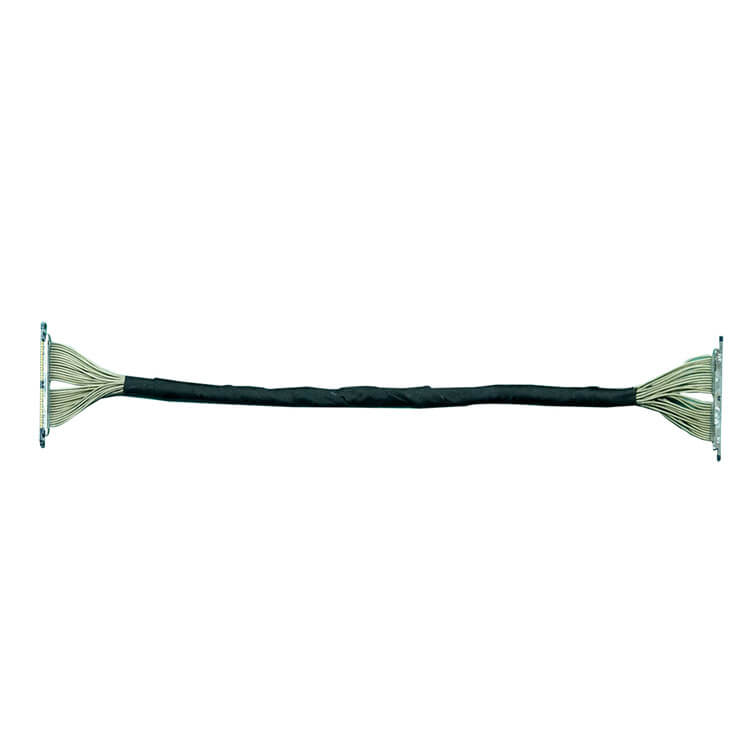

In the relentless push for smaller, faster, and more powerful electronics – from cutting-edge medical devices and aerospace systems to next-gen telecommunications and high-resolution imaging – high-density micro-coaxial cable bundles have become indispensable. These tightly packed assemblies carry critical signals across short distances within complex systems. However, cramming numerous signal paths together creates a significant challenge: crosstalk.
Crosstalk is the unwanted transfer of electrical energy from one cable (the “aggressor”) to an adjacent one (the “victim”). Think of it as signal “bleed-over” or electrical whispering between neighbors. In sensitive applications, this interference can corrupt data, distort signals, degrade image quality, or even cause system malfunctions. Avoiding crosstalk is paramount for reliable performance.
Why High-Density Micro-Coax is Particularly Vulnerable:
Proximity: The fundamental issue. Packing cables closely together minimizes the physical separation that naturally helps isolate signals.
Signal Speeds: Modern systems often use high-frequency signals. As frequency increases, signals become more prone to radiating electromagnetic energy and coupling into nearby conductors.
Long Parallel Runs: When cables run parallel for significant distances within a bundle, the opportunity for coupling increases dramatically.
Strategies to Silence the Crosstalk: Effective Solutions
Fortunately, engineers have developed robust techniques to combat crosstalk in these dense environments. Here’s your practical guide:
Leverage Superior Shielding: Your First Line of Defense
The Core Principle: Shielding acts as a barrier, containing a cable’s electromagnetic field and blocking external interference.
Micro-Coax Shield Types Matter:
Braid Shields: Offer excellent flexibility and good high-frequency coverage. Opt for higher braid coverage percentages (e.g., 85% or 95%) for better isolation.
Foil Shields (Aluminum/Mylar): Provide 100% coverage at lower frequencies and are very effective against electric field coupling. They are less flexible than braid.
Combination Shields (Braid + Foil): The gold standard for high-density, high-frequency applications. The foil handles very high frequencies and electric fields, while the braid provides mechanical strength, flexibility, and enhanced magnetic field protection at lower frequencies. This is often the recommended choice for the toughest crosstalk challenges.
Optimize Cable Geometry & Construction:
Precise Impedance Control: Consistent impedance (e.g., 50 Ohm or 75 Ohm) along the cable length minimizes signal reflections, which can exacerbate crosstalk issues.
Dielectric Materials: High-quality, stable dielectric materials surrounding the center conductor influence signal speed and loss. Low-loss dielectrics help maintain signal integrity.
Twisted Pairs (Within Micro-Coax): Some specialized micro-coax designs twist the inner conductor and dielectric within the shield. This can help cancel magnetic field coupling, similar to twisted pair cables, offering another layer of crosstalk reduction.
Master the Art of Bundling & Routing: Installation is Key
Minimize Parallel Run Lengths: Wherever possible, break up long parallel sections. Crossing cables at angles (ideally 90 degrees) significantly reduces coupling compared to long, straight parallel runs.
Strategic Separation: Physically separate cables carrying very high-speed or sensitive signals from each other within the bundle. If possible, group similar signal types together.
Maintain Bend Radius: Avoid sharp bends that can deform the cable structure, potentially compromising the shield’s effectiveness and impedance control, leading to increased radiation and susceptibility.
Proper Grounding: Ensure all cable shields are terminated correctly to a solid, low-impedance ground point. Inconsistent grounding creates ground loops and can actually introduce noise or worsen crosstalk. Follow the manufacturer’s termination guidelines meticulously.
Cable Dress & Strain Relief: Secure the bundle neatly to prevent movement and abrasion, which can damage shields over time. Use appropriate strain relief at connectors.
How it Works: Transmits the signal as the difference in voltage between two complementary conductors (e.g., P+ and P-). Any noise or crosstalk picked up common to both conductors is effectively canceled out at the receiver.
Benefit: Offers inherent noise and crosstalk immunity. Requires cables designed for differential pairs.
Time Domain Reflectometry (TDR): Essential for verifying impedance consistency along the cable length and identifying any faults or discontinuities that could cause reflections and signal integrity issues.
Vector Network Analysis (VNA): Measures key parameters like Insertion Loss (signal attenuation) and, crucially, Crosstalk (Near-End Crosstalk – NEXT & Far-End Crosstalk – FEXT) across the required frequency spectrum. This is the definitive test for quantifying crosstalk performance.
Eye Diagram Testing: For high-speed digital signals, eye diagrams provide a visual assessment of signal integrity, showing the combined effects of jitter, noise, and crosstalk.
Choosing the Right Micro-Coax Cable: Key Questions
When sourcing cables for high-density bundles, ask your supplier:
What specific shield construction is used? (Braid coverage %, Foil type, Combination?)
What is the guaranteed impedance and tolerance? (e.g., 50 Ohm ±2 Ohms)
What is the cable’s rated frequency/bandwidth? Ensure it exceeds your application needs.
Do you have measured crosstalk (NEXT/FEXT) data? Request performance graphs relevant to your frequency range.
What are the recommended termination methods and bend radii?
Are there variants optimized for differential signaling? (If applicable).
